Description
Description: VGA RS232 CAT5 CAT6 TRANSMITTER RECEIVER

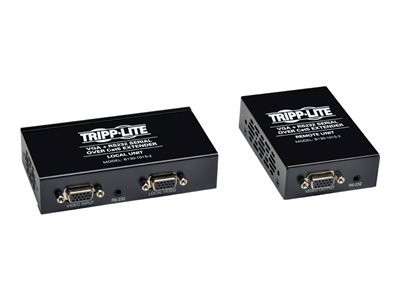

Tripp Lite VGA & RS232 over Cat5/Cat6 Video Extender Transmitter & Receiver EDID – Video/serial extender – over CAT 5/6 – up to 1000 ft – TAA Compliant
Tripp Lite’s B130-101S-2 allows you to extend a 1920 x 1440(60Hz) Video and RS232 Serial signal up to 152.4 m (500-ft.), or a 1024 x 768(60Hz) Video and RS232 Serial signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N022-01K-GY(Cat5) and N222-01K-GY(Cat6). For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. The local(Transmitter) unit features an additional VGA port for the connection of a local monitor. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors.
Key Selling Points
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
EDID copy feature ensures optimal display compatibility
Supports bi-directional communication

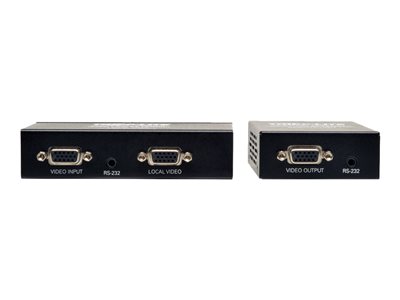

The local unit features an additional VGA port for the connection of a local monitor
The remote unit features built-in Equalization and Gain controls to adjust the video image

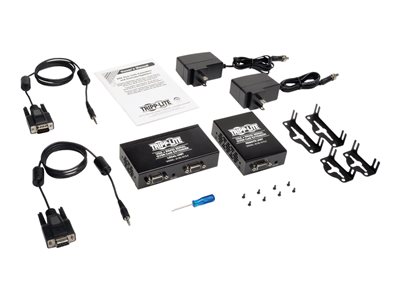

Includes mounting hardware for both the local and remote units, allowing them to be wallmounted, rackmounted or pole mounted
Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors
