Description
Description: VGA OVER IP TRANSMITTER EXTD W/ RS-232

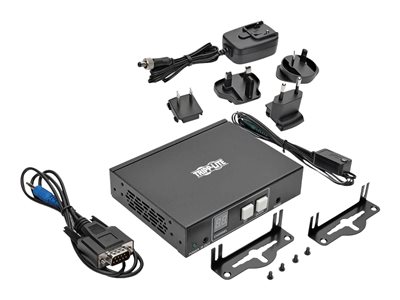

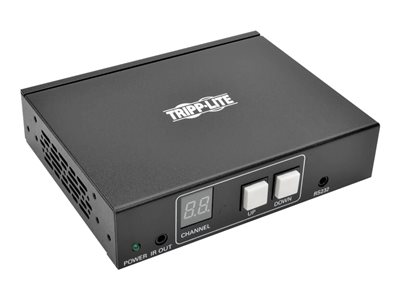

Tripp Lite VGA Over IP Transmitter/ Extender w/ RS-232 Serial, IR Control TAA – Video/audio/infrared/serial extender – transmitter – up to 328 ft – TAA Compliant
The B160-001-VSI VGA Video + Audio with RS-232 Serial and IR Control over IP Transmitter extends and distributes VGA video + audio, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the receiver (sold separately), the total maximum distance from source to display is 656 feet (200 m).
Designed for managed network switches with IGMP, which allow login and remote management via switch interface, the B160-001-VSI displays a single source on a single display or distributes a single signal to multiple displays. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.**
The B160-001-VSI supports video resolutions up to
1920 x 1440, including 1080p, though it’s limited to the maximum resolution of
the receiver (sold separately). You can send the video source to
any analog or digital display, including HDMI and VGA. It extends IR control
signals that control a source, such as a Blu-ray player, from a remote display,
as well as RS-232 signals at serial baud rates up to 57600 Bps.
Compatible with Tripp Lite’s B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
Key Selling Points
Converts source video to IP-based signal transmitted to and distributed through network switch
Extends signal up to 328 ft. (100 m) from switch
Can also connect directly to receiver up to 328 ft. away
Allows login and remote management via switch interface
Display single source on single display or distribute single signal to multiple displays
Video source can be sent to any analog or digital display, including HDMI and DisplayPort
Connect up to 64 transmitters and 255 receivers in single managed switch installation
