Description
Description: VGA OVER IP RECEIVER EXTD W/ RS-232 SER

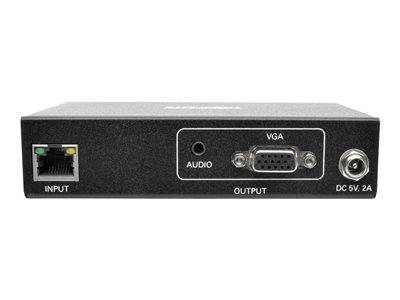

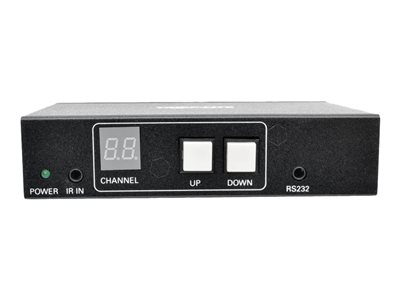

Tripp Lite VGA Over IP Receiver / Extender w/ RS-232 Serial & IR Control TAA – Video/audio/infrared/serial extender – receiver – up to 328 ft – TAA Compliant
The B160-100-VSI VGA Video
+ Audio with RS-232 Serial and IR Control over IP Receiver extends and
distributes VGA video +
audio, RS-232 serial and IR (infrared) remote signals through a
dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an
additional 328 feet between the switch and the transmitter (sold separately),
the total maximum distance from source to display is 656 feet (200 m).
The B160-100-VSI is designed for managed network switches
with IGMP, which allow login and remote management via switch interface. You
can connect up to 64 transmitters and 255 receivers in a single managed switch
installation.**
The B160-100-VSI supports video resolutions up to 1920 x 1440,
including 1080p. It works with any analog or digital source, including HDMI and
DisplayPort . It extends IR control signals that control a source, such as a
Blu-ray player, from a remote display, as well as RS-232 signals at serial
baud rates up to 57600 Bps.
Compatible with Tripp Lite’s B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
Key Selling Points
Converts source video to IP-based signal transmitted to and distributed through network switch
Extends signal up to 328 ft. (100 m) from switch
Can also connect directly to transmitter up to 328 ft. away
Allows login and remote management via switch interface
Works with any analog or digital source, including HDMI and DisplayPort
Connect up to 64 transmitters and 255 receivers in single managed switch installation
