Description
Description: 750FT VGA AUD OVER CAT5 EXTD TRANSMITTER
Tripp Lite VGA Audio over Cat5/Cat6 Video Extender Transmitter Receiver EDID USB 750ft – Monitor/audio extender – over CAT 5/6 – up to 750 ft – TAA Compliant

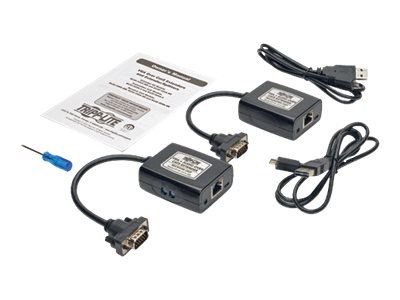

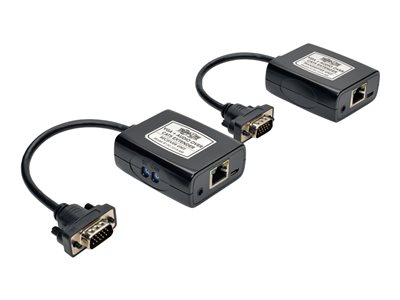

Tripp Lite’s B130-101A-MR VGA with Audio over Cat5 Extender Kit is a cost effective solution for those who don’t need the long range capabilities(up to 304.8 m (1,000-ft.) of Tripp Lite’s B130-101A-2. It extends a 1920 x 1080 video and audio signal up to 91.44 m (300-ft.) from the source, or a 1024 x 768 video and audio signal up to 228.6 m (750-ft.) The EDID copy feature stores the monitor’s EDID information and sends it to the connected computer, ensuring optimal display compatibility. Power is supplied via the included USB Micro-B cables, with no external power supplies required. Connect the included Micro-B cables between the Transmitter and Receiver, and a USB port on a computer, monitor, or USB wall charger, such as the Tripp Lite UAC-1B. The receiver unit also features equalization and gain controls to adjust the video image. Audio connections are made with standard 3.5mm stereo cables(not included) at both the transmitter and receiver.
Key Selling Points
Extends a 1920 x 1080 video and audio signal up to 300-ft, or a 1024 x 768 video and audio signal up to 750-ft
24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite’s N202-Series Cat6 cables) is required to achieve maximum distance and resolution
EDID copy feature stores the monitor’s EDID information and sends it to the connected computer, ensuring optimal display compatibility
Power is supplied via the included USB Micro-B cables; no external power supplies required
Receiver unit features built-in equalization and gain controls to adjust the video image
All operating systems supported
