Description
Description: SU3000LCD2UHV 3000VA 2700W OL RM UPS

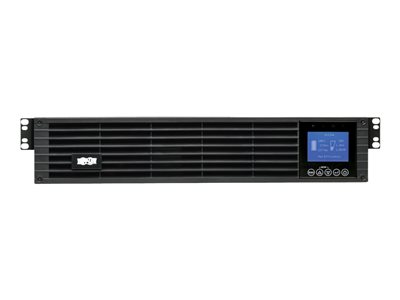

Tripp Lite UPS Smart Online 3000VA 2700W LCD Rackmount 208/240V USB DB9 2U – UPS (rack-mountable) – 14.97 A – AC 200/208/220/230/240 V – 2700 Watt – 3000 VA – 1-phase – RS-232, USB – output connectors: 8 – 2U – 19″
The SU3000LCD2UHV SmartOnline 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options. In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. “Smart” battery packs, such as Tripp Lite’s BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.

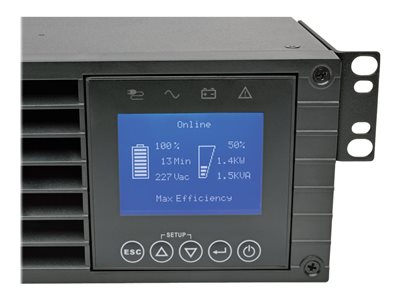

Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems. This UPS offers eight receptacles-six NEMA 6-15/20R and two NEMA L6-20R-in two switched load banks. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots, configuration, updates and activity logs.
Key Selling Points
Converts AC input to DC power, then DC to fully regulated sine wave AC output
+/-2% voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
3000VA/2700W capacity

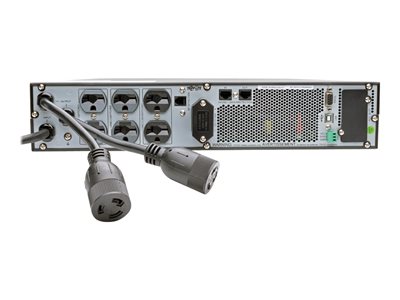

6 NEMA 6-15/20R and 2 NEMA L6-20R outlets
570-joule surge suppression rating
