Description
Description: 2200VA 1800W UPS SMART ONLINE LCD TWR

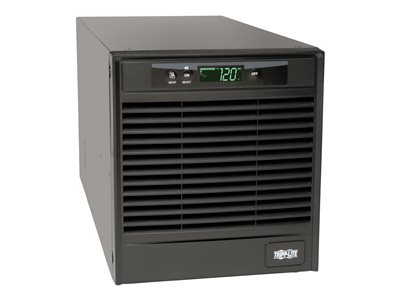

Tripp Lite UPS Smart Online 2200VA 1800W Tower 120V LCD USB DB9 Extended Run – UPS – 16 A – AC 100/110/120/127 V – 1800 Watt – 2200 VA – RS-232, USB – output connectors: 7
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in a variety of application environments. Online, double-conversion Uninterruptible Power Supply / UPS maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
Key Selling Points
Tripp Lite SU2200XLCD 2200VA / 2.2kVA / 1800W on-line, double-conversion tower UPS
Selectable 100/110/120/127V output (120V factory preset)
NEMA 5-20P input, 6 5-15/20R & 1 L5-20R outlets
Two switched output load banks support remote reboot and programmable load shedding options
Supports 2% output voltage regulation and zero transfer time in double conversion mode
Economy mode option offers high 97% efficiency, reduced power consumption and lower BTU emissions
13 minutes runtime at 50% load (900W) and 4.5 minutes at 100% load (1800W) with internal batteries
Extended runtime options available with BP48V24-2U (limit 1) or BP48V60RT3U (no limit) external battery packs (external battery configurations require Tripp Lite’s External Battery Configuration Software)
LCD interface reports operating mode plus 10 selectable screens of UPS data (Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Load kVA, Load kW, Battery charge percentage, Battery voltage and Minutes runtime)
LCD interface also supports 9 screens of advanced UPS configuration, setup and information options (Output voltage, Output frequency, Frequency regulation, Bypass range, Economy mode, Audible alarm, Overload alarm, External battery, Display IP address)
Single line TEL / Network surge suppression
Electronic bypass maintains utility output during a variety of UPS fault conditions
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software
