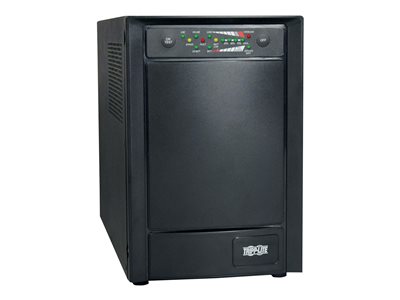

Tripp Lite UPS Smart Online 1000VA 800W Tower 100V 120V USB DB9 SNMP RT UPS 800 Watt 1000 VA SU1000XLA

Description

Description: 1000VA UPS SMART OL 120V USB DB9 TWR 5-1
Tripp Lite UPS Smart Online 1000VA 800W Tower 100V – 120V USB DB9 SNMP RT – UPS – AC 120 V – 800 Watt – 1000 VA – RS-232, USB – output connectors: 6 – attractive black

Tripp Lite’s Smart Online SU1000XLa on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black upright tower form factor. Large capacity 1kVA/800 watt UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6 UPS supported outlets. 2 single-outlet load banks can be independently controlled via a software interface to selectively reboot remote equipment, or automatically shed less critical loads to extend battery runtime for the most critical equipment. Extended runtime available with optional BP24V15RT2U, BP24V28-2U or BP24V70-3U external battery packs. Includes slot for internal network management cards, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for network management card options. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Tripp Lite’s PowerAlert UPS Power Management Software is available via free download. Compatible with Tripp Lite’s Watchdog Service Monitoring/Rebooting Software.

Whats in the Box

• SU1000XLa Online UPS System
• USB, DB9 and EPO cables
• Owner’s Manual with warranty information

Key Selling Points
True on-line, double conversion UPS provides a constant, pure sine wave AC output
Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
Zero transfer time, on-line, double-conversion and economy-mode operation supported
Removes harmonic distortion, electrical impulses, frequency variations and other hard to solve power problems
Accepts input voltages between 80 and 150 (65 to 150 at loads under 70%), regulating output to 120V AC +/-2%
1000VA/800 watt output capacity with 6 total outlets (6 NEMA5-15R)
Two built-in individually switchable load banks can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment (2 banks of 1 outlet)
Standard internal battery set provides 14 minutes runtime at half load and 4 minutes at full load
Extended runtime available with optional BP24V15RT2U, BP24V28-2U or BP24V70-3U external battery packs
Some external battery configurations require the use of Tripp Lite’s External Battery Configuration Software (see manual)
Attractive all-black upright tower format
Simultaneous communications use via HID-compliant USB port, serial port, and SNMP/web card slot
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
DB9 serial network interface supports RS-232 and contact closure messaging
Slot for optional SNMP/web card (part# SNMPWEBCARD)
Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
Compatible with Tripp Lite’s WatchDog Service Monitoring/Rebooting Software (part# WATCHDOGSW)
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Diagnostic LEDs
$250,000 Ultimate Lifetime connected equipment insurance (USA and Canada Only)
