Description: 3000VA UPS SMART 120V AVR USB DB9 5-15/2
Tripp Lite UPS Smart 3000VA 2880W Rackmount AVR 120V Pure Sign Wave USB DB9 4URM Telecom – UPS (rack-mountable) – AC 120 V – 2.88 kW – 3000 VA – RS-232, USB – output connectors: 9 – 4U – attractive black
Tripp Lites SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures. Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations.
SMART3000CRMXL 4U rackmount 3000VA UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Supports 3000VA/2880 watts when powered via included L5-30P input plug. Supports up to 3300VA/3300 watts when hardwired to a 120V 30A input source. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V.
Key Selling Points
Tripp Lite’s SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures
Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations
Runtime is expandable with optional BP48V48RT4U and BP48V24-2U reduced-depth external battery packs
Some external battery configurations require the use of Tripp Lite’s External Battery Configuration Software (see manual)
SMART3000CRMXL 4U rackmount 3000VA/2880 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations
Supports loading up to 3600 watts when hardwired
Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V

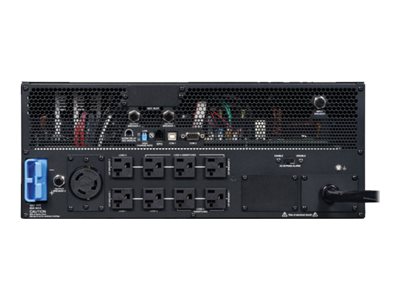

Includes NEMA L5-30P input plug (hardwire line cord installation supported), L5-30R and 5-15/20R output receptacles
Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot
Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection
Additional ENVIROSENSE accessory, when used in conjunction with SNMPWEBCARD reports temperature, humidity and status of up to two directly connected contact closure sensors
HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X
97% efficiency in line power mode offers substantially lower operating costs than lower efficiency UPS types
Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once
Includes PowerAlert monitoring software with USB and serial cables
Emergency Power Off (EPO) interface
Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices
3-stage metered current monitoring and battery charge status LEDs; Utility power and voltage regulation LEDs; Audible alarm; Self-test

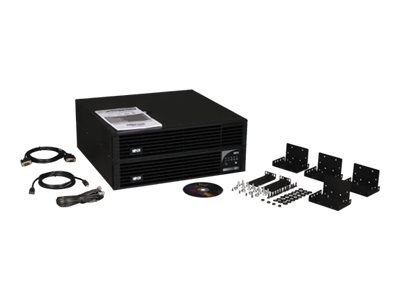

2-post rackmount accessories included; 2-9USTAND tower stands and 4POSTRAILKIT 4 post rackmount kit available
Field-replaceable, hot-swappable internal batteries and external battery packs
Attractive all-black color scheme
