Description
Description: 3000VA UPS INTL SMART USB 230V DB9 TWR C

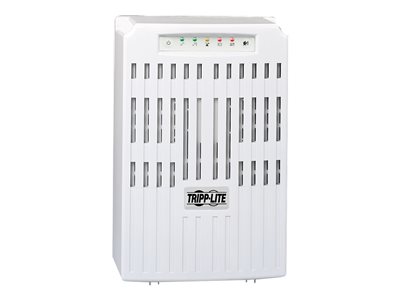

Tripp Lite UPS Smart 3000VA 2250W Tower AVR 230V 3kVA C19 C13 – UPS – AC 230 V – 2.25 kW – 3000 VA – output connectors: 9 – gray
Tripp Lite’s SMARTINT3000VS intelligent, line-interactive tower uninterruptible power supply(UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 14 minutes half load runtime and 4 minutes at full load. Runtime is expandable with optional external battery packs. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 3000VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of 9 outlets with 3 load banks that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports Network Management Card options, such as Tripp Lite’s SNMPWEBCARD network interface. Emergency Power Off(EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme.
Key Selling Points
SMARTINT3000VS line-interactive UPS offers protection from blackouts, brownouts, overvoltages and surges
3000VA / 2250 watt capacity
Internal batteries support a half load of 1500VA for 14 minutes and a full load of 3000VA for 4 minutes
Runtime is further expandable with the addition of BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs
Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V

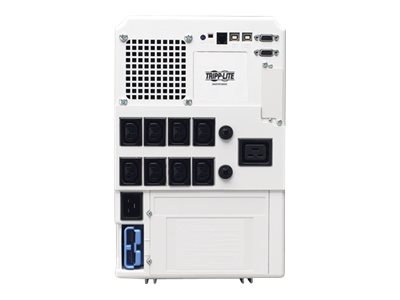

Includes 9 UPS supported outlets with 3 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface
IEC320-C20 input connection accepts a variety of detachable cord sets to match country or site-specific wall receptacles
PowerAlert UPS monitoring and unattended shutdown software included
Offers simultaneous monitoring by up to 4 directly-connected devices through included USB and DB9 interface ports, or the monitoring by any number of additional servers over IP with included PowerAlert monitoring software
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
Emergency Power Off (EPO) interface with cable
Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for delayed or immediate reboot of connected devices
Supports Tripp Lite’s WatchDog software application (requires optional WATCHDOGSW)
Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
Emergency Power Off (EPO) interface with cable
Multi-function audible alarms and set of 5 front panel LEDs
Network-grade AC surge suppression
