Description
Description: 2200VA UPS SMART 120V AVR DB9 EXT TWR

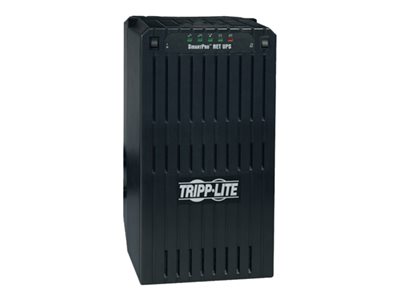

Tripp Lite UPS Smart 2200VA 1700W Tower AVR 120V XL DB9 for Servers – UPS – AC 120 V – 1.7 kW – 2200 VA – output connectors: 6 – Canada, United States – black
Tripp Lite’s SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.
Whats in the Box
- SMART 2200NET UPS System
- PowerAlert Software and three 6 foot network cables
- Warranty information
- Instruction manual
Key Selling Points
SMART 2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices
Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts)
Runtime is further expandable with optional external BP24V33 battery packs (output VA is derated as external battery packs are added, see specifications)
Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V
Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface
PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user defined script commands
Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software
In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity
Supports activate self-test and UPS output power control for delayed or immediate reboot of connected equipment
Diagnostic LEDs (indicate 17 performance conditions)
UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
250,000 Ultimate Lifetime Insurance (USA & Canada Only)
