Description
Description: UPS MNT BYPASS PANEL SUT40K 3 BREAKER

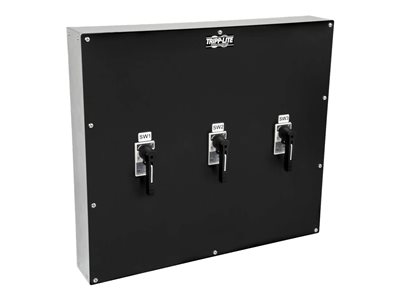

Tripp Lite UPS Maintenance Bypass Panel for SUT40K – 3 Breakers – Bypass switch – 150 A – AC 120/208 V – 3-phase 4 Wire delta
The SUT40K maintenance bypass panel maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for input, bypass and output. The breakers have removable handles to allow the panel’s trim cover to be removed for internal access.
Key Selling Points
Isolates a Tripp Lite SUT40K UPS from connected loads to permit maintenance
Allows connected loads to remain continuously powered

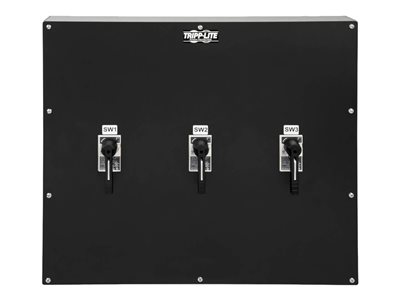

Three built-in 4-pole circuit breakers for Input, Bypass and Output

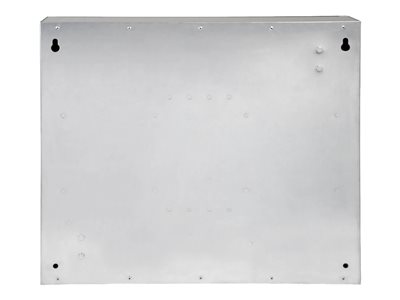

Mounting holes for convenient wall installation
Maximum current capacity is 150A
