Description
Description: 2200VA 1980W INTL UPS SMART OL LCD RM

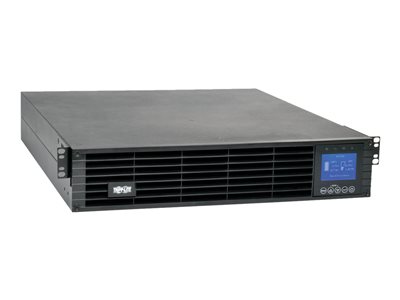

Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U – UPS (rack-mountable) – 10.94 A – AC 200/208/220/230/240 V – 1980 Watt – 2200 VA – 1-phase – RS-232, USB – output connectors: 9 – 2U – 19″
The SUINT2200LCD2U SmartOnline 2200VA/1980W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. ENERGY STAR certification saves you money by meeting strict EPA guidelines. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options. In case of AC power outage, the internal batteries support 11.7 minutes of runtime at half load and 4.3 minutes at full load. Extended runtime is possible with optional external battery packs. “Smart” battery packs, such as Tripp Lite’s BP48V27-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life. Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots and activity logs.
Key Selling Points
Converts AC input to DC power, then DC to fully regulated sine wave AC output
+/-2% voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
2200VA/1980W capacity
1 C19 and 8 C13 outlets
936-joule surge suppression rating
Reports detailed status information, including load and battery levels
Offers advanced configuration options, including output voltage and power strategies
Auto Adaptive enables high efficiency and high-quality operation as necessary for ideal equipment protection
Max Efficiency favors economy operation with high 95% efficiency
Max Quality favors on-line double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time
Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency(50/60 Hz)
Supports half load for 11.7 min. and full load for 4.3 min.
Add external battery packs for extra runtime
“Smart” battery packs, such as Tripp Lite’s BP48V27-2US, are automatically sensed and configured during replacement
Full capacity available with and without external battery packs
Battery-independent restart ensures automatic power-up after lengthy power outages
Customize communications and behavior to integrate with device makers’ specific needs
Selectable auto-restart from 0 to 60 sec. after AC power is restored
Selectable minimum battery charge level before auto-restart
Schedule system reboot if USB signal from connected device is lost
Set overload thresholds and low battery levels for alert and shutdown
Remote on/off support via DB9
Saves money and energy and protects environment by meeting strict EPA efficiency guidelines
Optional Tripp Lite SNMPWEBCARD permits remote management of UPS, including reboots, configuration, updates and activity logs
