Description
Description: 8PT UNMGD GETH SWCH 10/100/1000 MBPS POE

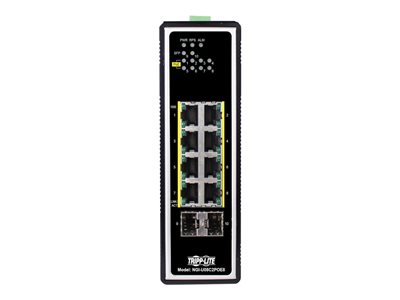

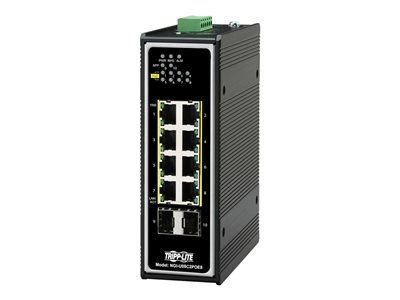

Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 8-Port – 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount – Switch – unmanaged – 8 x 10/100/1000 + 2 x 1000Base-X SFP (uplink) – DIN rail mountable – PoE+ (240 W) – DC power – TAA Compliant
This Tripp Lite network switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Eight auto-negotiating 10/100/1000 Mbps PoE (Power over Ethernet) ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this unmanaged switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 120W at 24VDC or 240W at 48VDC.
The NGI-U08C2POE8 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Because it is an unmanaged switch, the NGI-U08C2POE8 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2POE8 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. A DIP switch supports an alarm relay output in which you can connect an alarm light or buzzer.

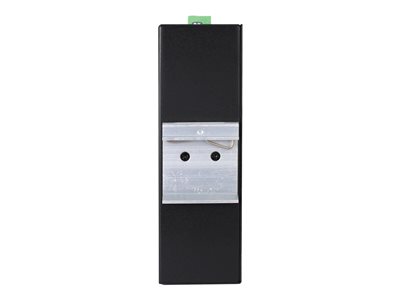

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24 – 57VDC terminal block supplies power input.
The NGI-U08C2POE8 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Whats in the Box
- Tripp Lite 8-Port Unmanaged Industrial Gigabit Ethernet Switch – 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount
- External power adapter
