Description
Description: 8PT UNMGD GETH SWCH 10/100/1000 MBPS 2 G

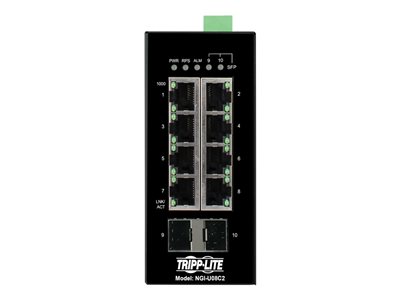

Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 8-Port – 10/100/1000 Mbps, 2 GbE SFP Slots, DIN Mount – Switch – unmanaged – 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) – DIN rail mountable – DC power – TAA Compliant
This Tripp Lite network switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Eight auto-negotiating 10/100/1000 Mbps Gigabit Ethernet ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2 also features two GbE SFP slots.
The NGI-U08C2 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Because it is an unmanaged switch, the NGI-U08C2 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24-48VDC terminal block supplies power input. Device power shall be supplied by LPS (Limited Power Source).
The NGI-U08C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
