Description
Description: 20KVA SMART OL 3-PHASE UPS 208/120V FRM
Tripp Lite SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, No SVBM Battery Module – UPS – AC 120/127/208/220 V – 18 kW – 20000 VA – 3-phase WYE (star) – no battery – RS-232

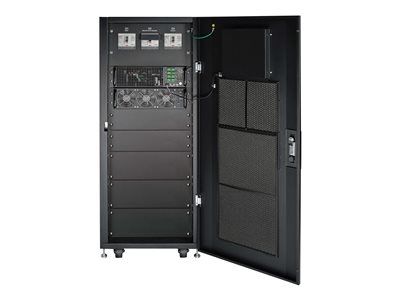

20kVA 18kW 3-Phase Small-Chassis UPS System
● Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
● Dual hardwire input design enables operation from up to 2 power sources
● Network-grade sine-wave AC output with 1% output voltage regulation and less than 2% output total harmonic distortion
● Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
● High 0.9 power factor offers higher kW output than lower-rated competing legacy designs
Pre-Installed WEBCARDLX Network Interface
● Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
● Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
● No Java required
Modular, Scalable Design for Maximum Flexibility
● Modular configuration with hot-swappable power and battery modules enables easy, fast maintenance with zero downtime
● Open slots for up to 2 additional 20kVA SV20PM power modules accommodate increased capacity up to 60kVA (or 40kVA with N+1 fault tolerance)
● External battery pack options available for even more extended runtime
● Supports external ±120VDC battery options for extended runtimes
Optional Economy Mode
● Up to 98% efficient in optional economy mode to lower operating and cooling costs
Wide Input/Narrow Output Voltage Operating Range
● Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
● Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode
Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
● Provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity
Automatic and Manual Bypass Options
● Keep connected equipment operational during routine maintenance or critical power module failure.
Key Selling Points
Compatible with 208/120V 220/127V SV Series UPS systems
Configurable for additional capacity or N+1 redundancy
Supports hot-swap installation and replacement
Rated at 0.9 power factor for max power to connected load

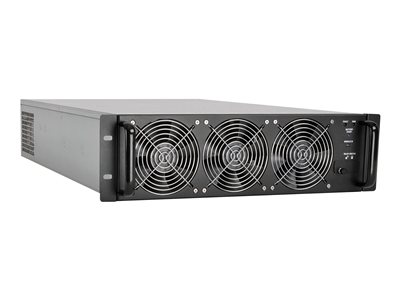

Occupies the equivalent of 3U of rack space in UPS system
