Description
Description: SIT STND DT WS ADJ STND DESK W/ CLAMP

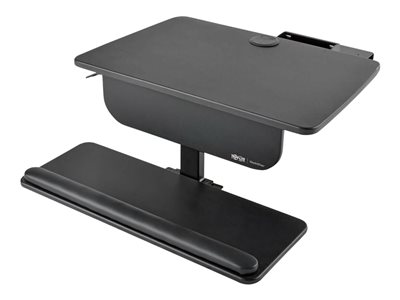

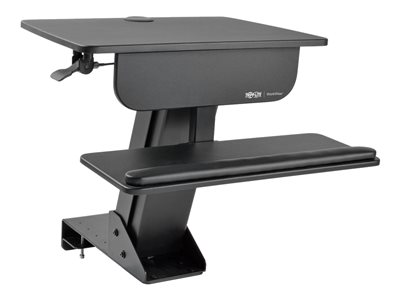

Tripp Lite Sit Stand Desktop Workstation Adjustable Standing Desk w/ Clamp – Standing desk converter – rectangular – black
Tripp Lite’s WWSSDC WorkWise Sit-Stand Desk-Clamp Workstation allows you to enjoy the benefits of standing for a portion of the day without modifying your entire work surface. Simply clamp the WWSSDC to the edge of a fixed-height desk or table from 1 to 3 inches thick. With a single touch, you can change the height of your monitor and keyboard to improve ergonomics, promote health and increase productivity.

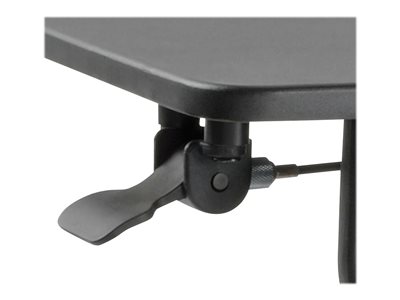

To adjust the height of the WWSSDC, press the lever to raise or lower the pneumatic spring arm. The monitor platform and keyboard tray move together to provide smooth transitions between sitting and standing. Increase tension for heavier loads or decrease it for lighter items. The workstation remains stable at all heights. Maximum weight capacity is 29 pounds.
The WWSSDC base can be adjusted from front to back along the clamp plate in 2-inch increments to compensate for different desk depths. Minimum desk depth is 18.9 inches. Maximum desk depth is 31.5 inches.
Monitor platform is 23.6 x 15.7 inches and adjusts between 8.5 and 22 inches above the work surface. It’s sturdy enough to support a dual-arm display mount. Integrated cable management reduces cable clutter.
Keyboard tray is an oversized 23.6 x 11 inches to accommodate the largest, most popular models. The tray adjusts from desktop level up to 13.5 inches. In certain installations, the tray can be 3 inches below the work surface. The wrist rest is removable. Plugs are included to fill exposed mounting holes.
Whats in the Box
- Lift mechanism
- Monitor platform
- Keyboard tray with wrist rest
- Keyboard panel
- Keyboard bracket
- Clamp plate
- Clamp bracket
- Support bracket
- Pressure plate
- (2) M8 x 70.5 screws
- (10) M6 x 8 screws
- (2) M6 x 10 screws
- (10) M6 x 12 screws
- (2) M6 x 15 screws
- (2) Hole plugs
- Large hex key
- Small hex key
- Owner’s manual
Key Selling Points
Lever raises or lowers pneumatic arm for smooth height adjustment
Monitor platform and keyboard tray move together for seamless sit-stand transitions
Use included hex key to increase or decrease tension according to load
Maximum weight capacity is 29 lb.
Clamps to a flat fixed-height work surface from 1 to 3 in. thick
Workstation base adjusts from front to back along the clamp plate in 2 in. increments
Minimum desk depth is 18.9 in.; maximum desk depth is 31.5 in.
Clamp depth is 3.35 in.
Provides stability at all workstation heights
23.6 x 15.7 in. for flat-panel display, laptop or display mount
Adjusts between 8.5 and 22 in. above the work surface
Integrated cable management reduces cable clutter
Extra-large 23.6 x 11 in. tray holds the largest, most popular models
Adjusts up to 13.5 in. above the work surface
Wrist rest is removable
Mounting hole plugs included
