Description: CAT6 SURFACE MOUNT BOX 6PT UNSHIELDED
Tripp Lite Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box, 110 IDC, RJ45, White – Surface mount box – RJ-45 X 6 – white
The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.
Just snap open the top cover to terminate up to six 22–26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite’s N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

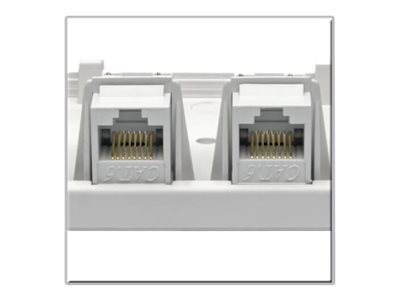

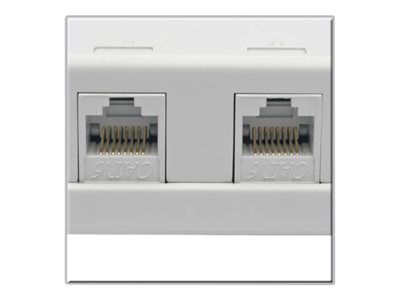

Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.
Key Selling Points
6-Port Surface-Mount Box Completes A/V, Voice and Ethernet Applications
● Connect up to 6 Cat5e/6 cables to pre-installed RJ45 keystone jacks
● 50 μm gold-plated contacts for maximum conductivity
● Durable ABS UL 94V-0 flame-retardant housing designed to last
● Complies with ANSI/TIA/EIA 568B standards
Ideal for Applications in Which In-Wall Installation Is Impossible
● Recommended for use with 22–26 AWG Cat5e/6 cabling
