Description
Description: PDU SWITCHED 230V 32A C13 IEC-309 2U RM
Tripp Lite PDU Switched 230V 32A 7.3kW 16 C13 Outlet IEC-309 Horizontal 2U TAA – Horizontal rackmount – power distribution unit (rack-mountable) – 32 A – AC 230 V – 7.4 kW – Ethernet 10/100 – input: IEC 60309 – output connectors: 16 – 2U
Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

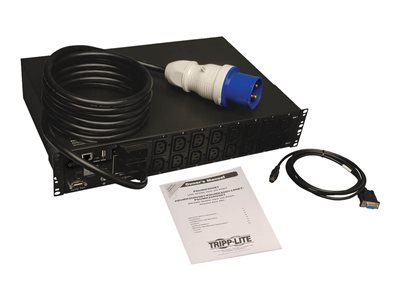

Whats in the Box
- Switched PDU
- Rack installation brackets
- Cable retention ties
- SNMPWEBCARD configuration cable
- PowerAlert software kit
- User manual
Key Selling Points
230V Switched PDU with built-in web/network interface in 2U rackmount form factor; 32A capacity
Blue 230V IEC-309 32A (2P+E) input cable; 12 ft. / 3.6m power cable included
16 switched C13 outlets
2U horizontal rackmount form factor
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage, frequency and loading information

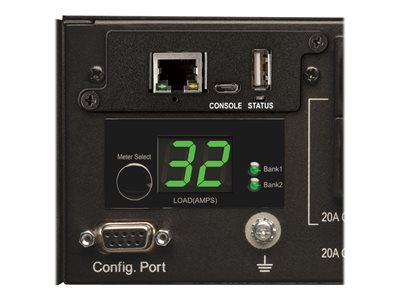

Digital display reports load level information in amps
Supports user-specified alarm notification thresholds
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets
TAA Compliant
