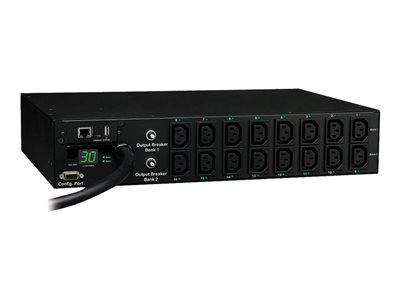

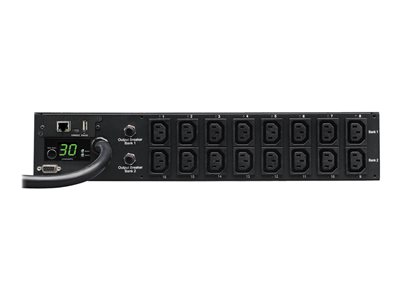

Tripp Lite PDU Switched 208V-240V 5.8kW 30A C13 16 Outlet L6-30P 2URM horizontal rackmount power distribution unit 5.8 kW PDUMH30HVNET

Description

Description: PDU SWITCHED 208V / 240V 30A C13 L6-30P
Tripp Lite PDU Switched 208V-240V 5.8kW 30A C13 16 Outlet L6-30P 2URM – Horizontal rackmount – power distribution unit (rack-mountable) – 30 A – AC 208/240 V – 5.8 kW – Ethernet 10/100 – input: NEMA L6-30 – output connectors: 16 (IEC 60320 C13) – 2U

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual current meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Whats in the Box

• Rackmount PDU
• Installable 2U mounting brackets

Key Selling Points
30A 208/240V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
Attached L6-30P 208/240V single phase input, 12 ft. / 3.6 m input cord
2U horizontal rack-mount form factor
16 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)
Supports user-specified alarm notification thresholds
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
2U horizontal rack installation supported in 2- or 4-post racks with included mounting brackets
Mounting brackets support wall-mount and under-counter installation in many applications
Included cord retention brackets
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
