Description
Description: PDU MONITORED HORIZONTAL 3.3/3.8KW

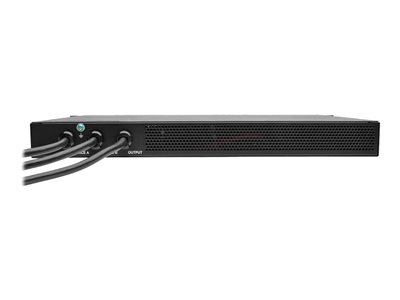

Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R 2 L6-20P 1U – Power distribution unit (rack-mountable) – 20 A – AC 200/208/220/230/240 V – 3.8 kW – 1-phase – Ethernet 10/100 – input: NEMA L6-20 – output connectors: 1 (NEMA L6-20) – 1U –
The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug. Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Key Selling Points
Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
Dual 10 ft. input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources
Fault-tolerant, hot-swappable UPS protection when used with single UPS; fully redundant UPS protection when each cord is connected to separate UPS systems
Connects a single device or indirectly powers equipment through a 0U 208/240V PDU with L6-20P input (sold separately)
Dynamic solid-state (TRIAC) automatic transfer switching
Switches to secondary power source if primary source fails or becomes unstable
1–5 ms transfer time ensures uninterrupted operation of connected equipment
Built-in processor prevents switching if secondary source is unavailable or of lower quality than primary source
Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor
LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Real-time load/current data with billing-grade accuracy (+/- 1 percent)
Automated alerts help prevent overloads, power loss and downtime
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
Optional PDU4PKIT rail kit (sold separately) adds rear mounting support
