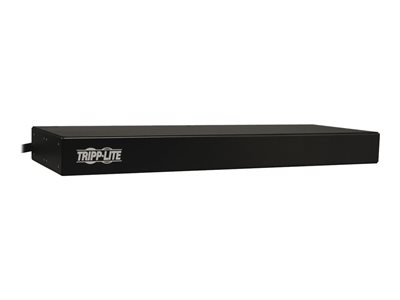

Tripp Lite PDU Monitored 120V 20A 5-15/20R 8 Outlet L5-20P Horizontal 1URM horizontal rackmount power distribution unit 1.9 kW PDUMNH20

Original price was: $715.10.Current price is: $679.35.

Tripp Lite PDU Monitored 120V 20A 5-15/20R 8 Outlet L5-20P Horizontal 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 20 A – AC 120 V – 1.9 kW – input: NEMA 5-20 – output connectors: 16 (NEMA 5-20) – 1U

SKU: PDUMNH20 Categories: , Brand: Tripp Lite

Description

Description: PDU MONITORED 120V 20A 5-15/20R 1U RM
Tripp Lite PDU Monitored 120V 20A 5-15/20R 8 Outlet L5-20P Horizontal 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 20 A – AC 120 V – 1.9 kW – input: NEMA 5-20 – output connectors: 16 (NEMA 5-20) – 1U

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Whats in the Box

  • Rackmount PDU
  • Plug retention plates
  • Rack mounting brackets
  • Owner’s manual
  • L5-20R to 5-20P adapter

Key Selling Points
20A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 16A continuous)
Attached NEMA L5-20P input plug with NEMA 5-20P adapter and 12ft / 3.6m line cord
1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
8 NEMA 5-15R outlets
Lighted display reports output power consumption in amps
LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Additional information

Weight 11.76 lbs
Dimensions 516 × 302 × 56 in
