Description

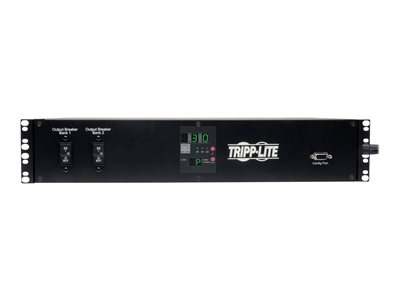

Tripp Lite 5 kW 208V/240V 30A Metered ATS PDU 16 C13, 2 C19 power distribution unit
The Tripp Lite 5 kW 208V/240V 30A Metered ATS PDU provides a redundant power option for single-corded network devices.
The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. And don’t worry if the primary power source becomes unstable or fails altogether. The ATS will switch over to the secondary power source until the primary input is back up and running.
Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle.
This will support a variety of advanced redundant power networking applications. It enables fault tolerant hot-swappable UPS protection when used with a single UPS. In addition it supports fully redundant UPS protection when each cord is connected to a separate UPS system.
ATS configs with separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. An on board ATS processor constantly evaluates power quality on both input sources. This prevents transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED’s display primary or secondary power availability.
Difference between Single Phase and 3 Phase
One key difference between single phase vs. three phase is that a three phase power supply better accommodates higher loads. Single-phase power supplies are most commonly used when typical loads are lighting or heating, rather than large electric motors.
There’s one other important difference between 3-phase power and single phase power. That’s the consistency of the delivery of power. Because of the peaks and dips in voltage, a single-phase power supply simply does not offer the same consistency as a three-phase power supply. A three-phase power supply delivers power at a steady, constant rate.
To compare the two, three-phase power supplies are more efficient. A three phase power supply can transmit three times as much power as a single phase power supply. Thus, three phase power supplies use less conductor material to transmit electrical power than single-phase power supplies.
You don’t last a century without doing something right…
Tripp Lite has been building trust for a century throughout the world. They are ready to protect your equipment and critical data from costly interruptions. Tripp Lite supplies reliable, network grade power reliably and efficiently. For one of the most trusted brands in the industry, choose Tripp-Lite. For answers, info, and great pricing, call Corporate Armor at 877-449-0458, or reach out to us here.
Highlights
- 208/240V 30A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 24A continuous)
- Provides a redundant power option for critical networking equipment with a single input power cord
- Digital display continuously reports total output power consumption in amps
- 19 built-in outlets (16 C13, 2 C19, 1 L6-30R)
- Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
Tripp Lite 5 kW 208V/240V 30A Metered ATS PDU datasheet
