Description: PDU METERED ATS 2.4KW 200-240V 3.6M 1URM
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 10 A – AC 200/208/220/230/240 V – 2.4 kW – input: IEC 60320 C14 – output connectors: 10 (IEC 60320 C13) – 1U – 19″

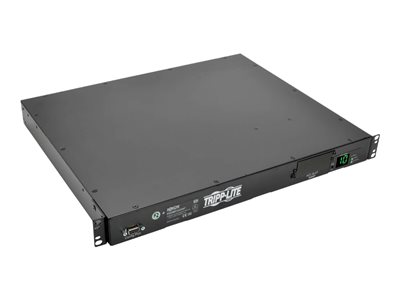

The PDUMH15HVAT 2–2.4kW Single-Phase 200–240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200–240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Key Selling Points
Enables redundant power for network devices with non-redundant power supply configurations

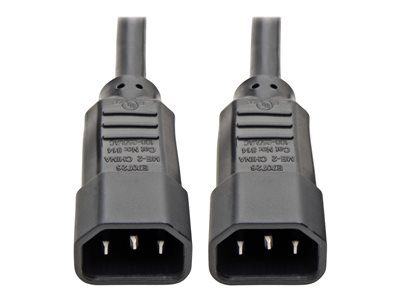

Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources

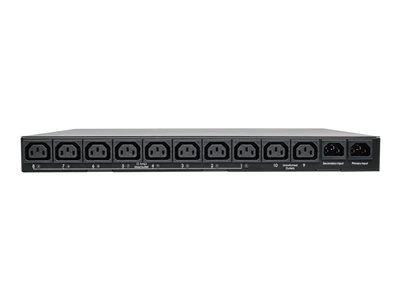

10 C13 outlets
Dynamic solid-state (TRIAC) automatic transfer switching
Switches to secondary power source if primary source fails or becomes unstable
2–5 ms transfer time ensures uninterrupted operation of connected equipment
Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
Easy-to-read ammeter displays total current used by connected equipment
Individual LEDs display outlet on/off status and input power status on primary and secondary inputs
Built-in card slot accommodates SNMPWEBCARD and WEBCARDLX accessories (sold separately)
Optional cards create a switched PDU by allowing remote access for power monitoring, configuration, outlet control and notification via web browser, SSH, telnet or SNMP
Compatible with EIA-standard 19 in. racks
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
