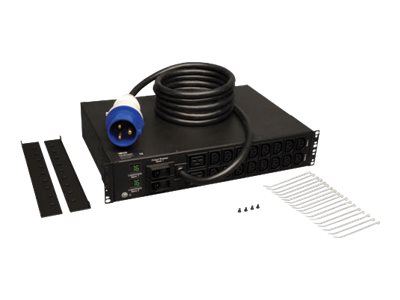

Tripp Lite PDU Metered 230V 32A 7.4kW 16 C13 2 C19 IEC-309 Horizontal 2URM horizontal rackmount power distribution unit 7.4 kW PDUMH32HV

Description

Description: PDU METERED 230V 32A C13 C19 IEC-309 2U
Tripp Lite PDU Metered 230V 32A 7.4kW 16 C13 2 C19 IEC-309 Horizontal 2URM – Horizontal rackmount – power distribution unit (rack-mountable) – 32 A – AC 230 V – 7.4 kW – input: IEC 60309 32A – output connectors: 18 – 2U – 19″

Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help network managers prevent overloads and plan for future growth. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Whats in the Box

• 2U metered PDU
• Mounting brackets
• Plug retention brackets
• User manual

Key Selling Points
32A single phase 230V Metered Power Distribution Unit / PDU
Set of two lighted current meters separately report power consumption in amps for each output load bank

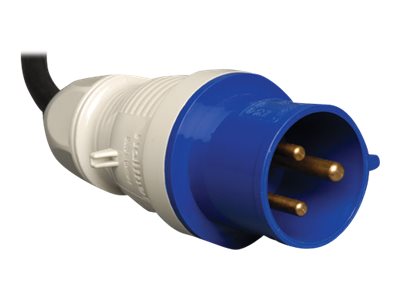

Attached IEC-309 32A (2P+E) input plug with 12 ft. / 3.6m line cord
2U horizontal rackmount format installs in two rack spaces
18 total 230V outlets (2 C19, 16 C13)
Outlets are arranged in two separately breakered and metered 16A load banks (each with 8 C13 and 1 C19 outlet)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Front-panel grounding lug
Included cord retention brackets
