Description
Description: PDU METERED 208V – 240V 20A C13 C19 1U

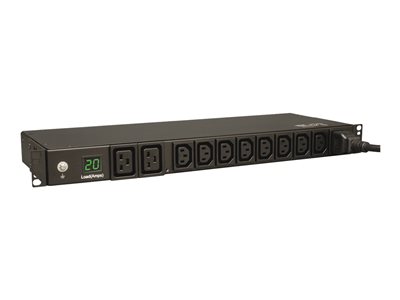

Tripp Lite PDU Metered 200V – 240V 20A 8 C13; 2 C19 C20 Horizontal 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 20 A – AC 200/208/230/240 V – 3.8 kW – input: IEC 60320 C20 – output connectors: 10 – 1U – 19″
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
16/20A single phase 200-240V Metered Power Distribution Unit / PDU(Agency de-rated to 16A continuous)
Built-in 2 digit visual meter continuously reports PDU load level in amps
C20 inlet with C20 input cable and L6-20P adapter; 12 ft. / 3.7m line cord
1U horizontal rackmount format installs in one rack space
10 total outlets(8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
