Description
Description: PDU METERED 120V 30A 5-15/20R L5-30P 0U

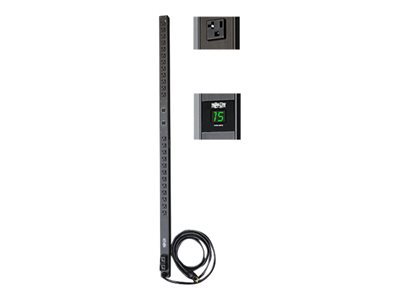

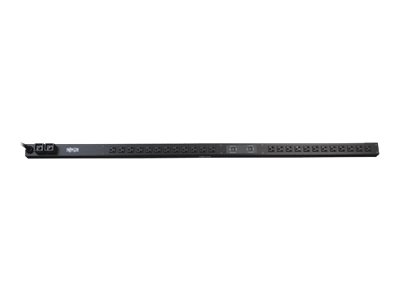

Tripp Lite PDU Metered 120V 30A 5-15/20R 24 Outlet L5-30P Vertical 0URM – Vertical rackmount – power distribution unit (rack-mountable) – 30 A – AC 120 V – 2.9 kW – input: NEMA L5-30 – output connectors: 24 (NEMA 5-15/20) – 0U
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Whats in the Box
- PDUMV30 63.75 inch basic PDU with owner’s manual
- Set of 2 bolt-on plug retention brackets and installation hardware
- Set of mounting brackets and installation hardware
Key Selling Points
30A single phase 120V Metered Power Distribution Unit / PDU
Set of two lighted meters report PDU output current in amps for each 12 outlet load bank
Attached NEMA L5-30P 30A 120V input plug with 10ft / 3m line cord
0U vertical rackmount format installs using no rack spaces
24 NEMA 5-15/20R output receptacles
Outlets are arranged in two 12 outlet load banks, each with separate 20A breaker and current metering
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
Cord retention brackets keep vital equipment plugs connected
