Description
Description: PDU METERED 120V 15A 5-15R OUTLET 5-15P

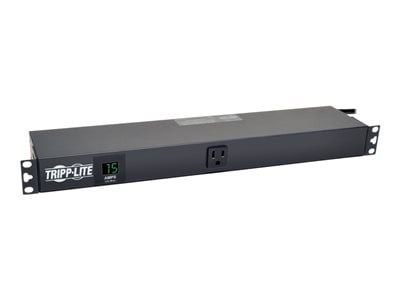

Tripp Lite PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM – Power distribution unit (rack-mountable) – 15 A – AC 120 V – 1.4 kW – input: NEMA 5-15P – output connectors: 13 – 1U
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
Built-in 2 digit visual meter continuously reports PDU load level in amps

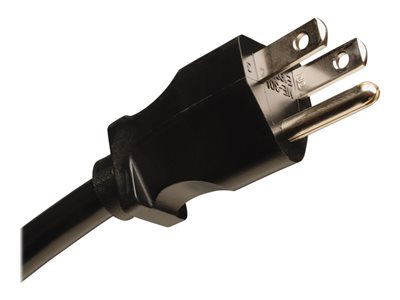

Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
1U horizontal rackmount format installs in one rack space
13 NEMA 5-15R outlets oriented with the ground pin on the bottom (1 front facing / 12 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
