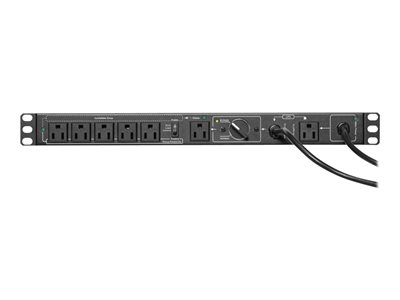

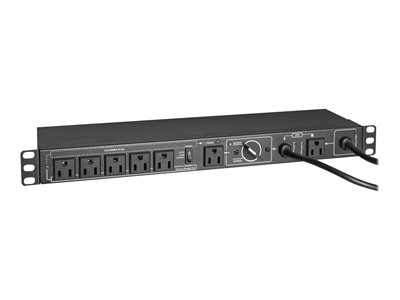

Tripp Lite PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall power distribution unit 1.5… PDUB151U

Description

Description: PDU HSWAP MAN 15A 6 5-15R 2 5-15P 1URM
Tripp Lite PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase – 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall – Power distribution unit (rack-mountable) – 15 A – AC 100/120/127 V – 1.52 kW – 1-phase – input: 2 x NEMA 5-15P – output connectors: 6 (

Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance
Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 120V 15A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU’s bypass switch, permitting maintenance or equipment replacement with no interruption of performance.
Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation

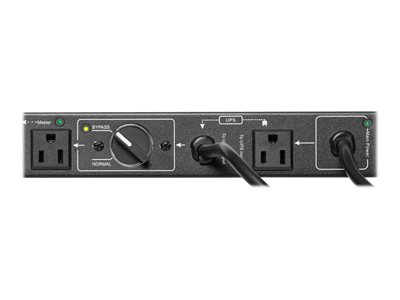

The PDUB151U includes separate UPS and utility input cables with NEMA 5-15P plugs. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the six NEMA 5-15R outlets will continue to operate without interruption.
Optional ECO Switching Feature Enables Cost-Cutting Power Savings

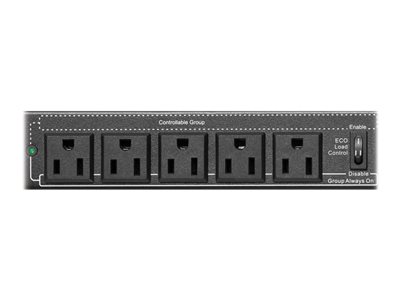

By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-15R outlets all at once when the device connected to the master 5-15R outlet is powered off or goes into a low-power consumption mode.
Mounts into 1U of Rack Space or Wall

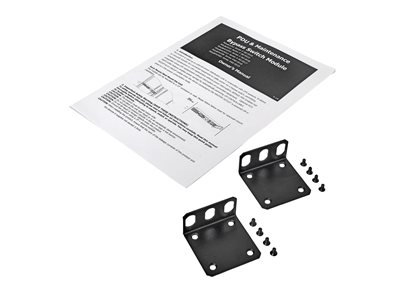

Use the included mounting hardware to install the PDUB151U’s all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.

Key Selling Points
Ideal for supporting critical IT equipment that require 24/7/365 uptime
Transfers connected components to utility power with no downtime during UPS maintenance

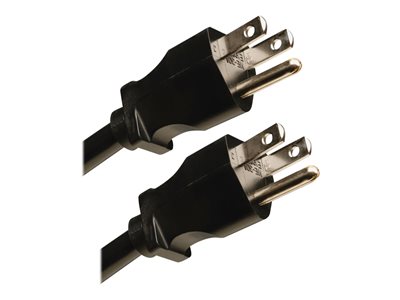

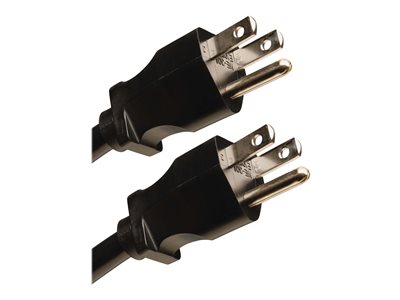

Dual UPS and utility input cables with NEMA 5-15P plugs deliver AC power
ECO mode saves power by shutting down controlled outlet bank in certain conditions
Mounts into 1U of rack space or onto wall using included mounting hardware
This product is covered by a 2-year limited warranty
