Description: PDU BASIC 120V 15A 5-15R 5-15P 0U RM

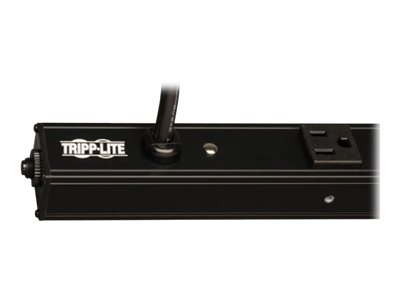

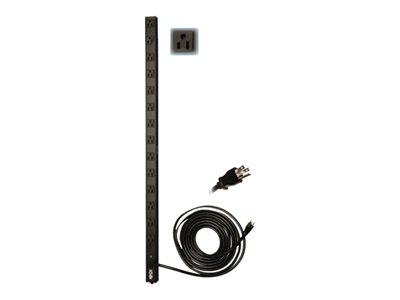

Tripp Lite PDU Basic 120V 1.44kW 15A 5-15R 14 Outlet 5-15P Vertical 0URM – Vertical rackmount – power distribution unit (rack-mountable) – 15 A – AC 120 V – 1.44 kW – input: NEMA 5-15 – output connectors: 14 (NEMA 5-15) – 0U
The PDUV15 1.44kW Single-Phase 120V Basic PDU is an excellent no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV15 features 14 NEMA 5-15R outlets. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The 36-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware and mounting clips or toolless mounting using the included buttons. You can also mount the PDUV15 on a wall or workbench or under a counter with user-supplied hardware.
Whats in the Box
- PDUV15 1.44kW Single-Phase 120V Basic PDU
- Mounting brackets
- Owner’s manual
Key Selling Points
PDUV15 offers reliable 15A 120V power distribution in 36 inch / .9m 0U vertical rackmount format
14 NEMA 5-15R output receptacles
NEMA 5-15P input plug
15 ft. / 4.6m attached line cord
15A resettable circuit breaker
Switch-free design prevents accidental shutoff
Toolless mounting buttons enable simple installation in Tripp Lite and other button-mount compatible equipment racks
Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
Included nut and bolt mounting brackets supports installation in non button-mount compatible racks
Mounting brackets also enable secure wallmount installation in a variety of raceway or workbench applications
