Description
Description: PDU BASIC 100V – 240V 16A C13 C19 C20 1U
Tripp Lite PDU Basic 100V – 240V 1.6/3.8kW 16A 12 C13; 2 C19 C20 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 16 A – AC 100-240 V – 3.8 kW – input: IEC 60320 C20 – output connectors: 14 (IEC 60320 C13, IEC 60320 C19) – 1U – 19″

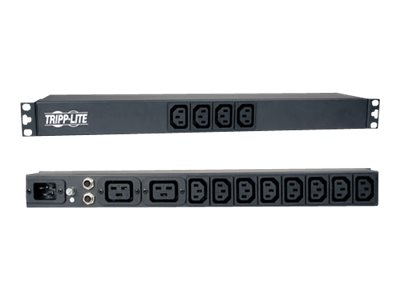

The PDU12IEC 1.6/3.8kW Single-Phase 100 – 240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU12IEC features a single load bank with 14 total outlets – eight rear C13, two rear C19 and four front C13. The C20 inlet accepts a variety of user-provided power cords that connect to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting.
Key Selling Points
16A single phase 100-240V Basic Power Distribution Unit / PDU
C20 inlet accepts a wide variety of customer provided input cable options
1U horizontal rackmount format installs in one rack space

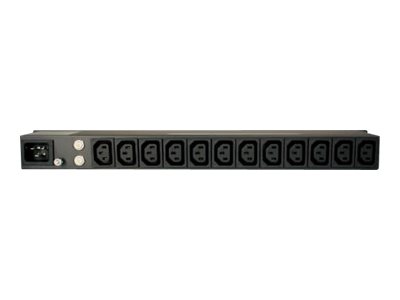

14 outlets (4 C13 front, 8 C13 / 2 C19 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
