Description: PDU 3 PHASE METERED 208V 8.6KW L21-30P
Tripp Lite PDU 3-Phase Metered 208V 8.6kW L21-30P 36 C13; 9 C19 0URM TAA – Vertical rackmount – power distribution unit (rack-mountable) – 24 A – AC 208 V – 8.6 kW – 3-phase – input: NEMA L21-30 – output connectors: 45 – 0U – 6 ft cord – TAA Compliant
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
8.6kW 3 phase 208V Metered Power Distribution Unit / PDU

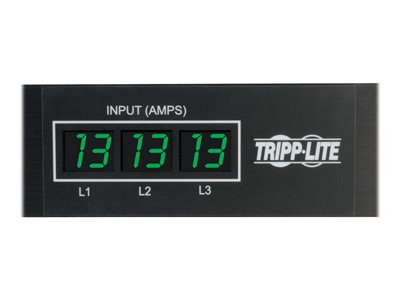

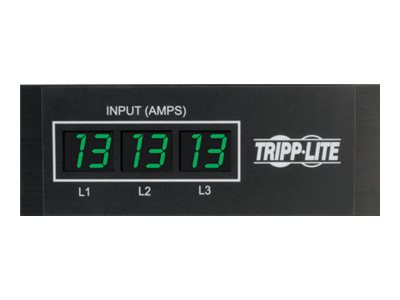

Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

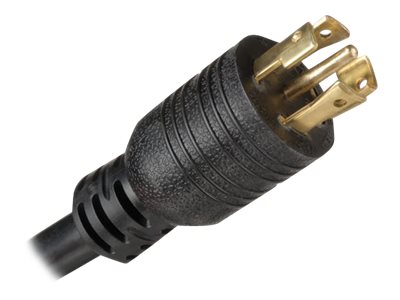

Attached NEMA L21-30P (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

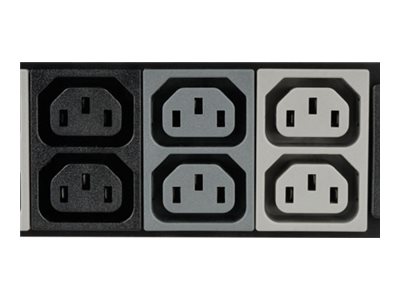

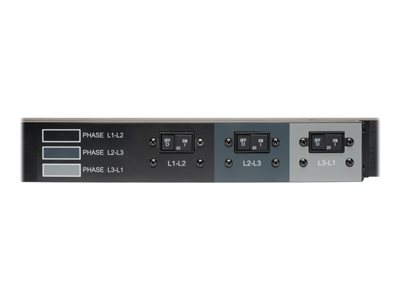

45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered

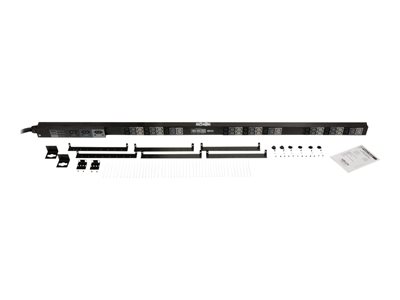

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
TAA Compliant
