Sale!

Tripp Lite PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA vertical rackmount power distribution unit 12.6 kW PDU3MV6H50

Original price was: $1,327.24.Current price is: $1,260.88.

Tripp Lite PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA – Vertical rackmount – power distribution unit (rack-mountable) – AC 208 V – 12.6 kW – 3-phase – input: Hubbell CS8365C – output connectors: 45 – 0U

SKU: PDU3MV6H50 Categories: , Brand: Tripp Lite

Description

Description: PDU 3 PHASE METERED 208V 12.6KW 36 C13 9
Tripp Lite PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA – Vertical rackmount – power distribution unit (rack-mountable) – AC 208 V – 12.6 kW – 3-phase – input: Hubbell CS8365C – output connectors: 45 – 0U

Tripp Lite 3 phase Metered PDU/Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. It offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessory.

Key Selling Points
12.6kW 3 phase 208V Metered Power Distribution Unit / PDU

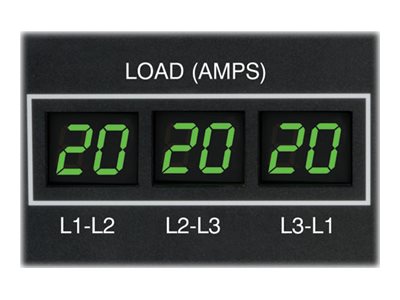

Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

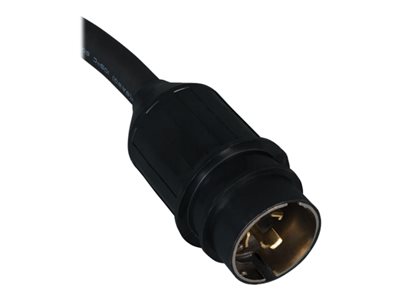

Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

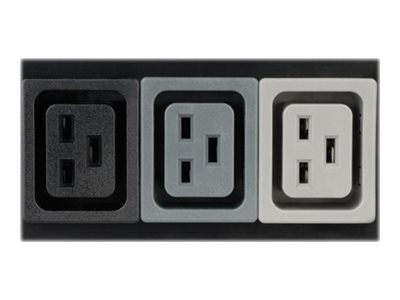

45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

Additional information

Weight 30.8 lbs
Dimensions 1952 × 265 × 160 in
