Description
Description: PDU 3 PHASE 208/120V 5.7 KW 21 5-15/20R
Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM – Vertical rackmount – power distribution unit (rack-mountable) – AC 208 V – 5.7 kW – 3-phase – input: NEMA L21-20 – output connectors: 27 – 0U
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key Selling Points
5.7kW 3 phase 208/120V Metered Power Distribution Unit / PDU

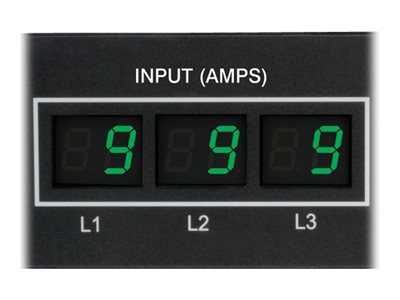

Set of 3 built-in current meters continuously report input current per phase

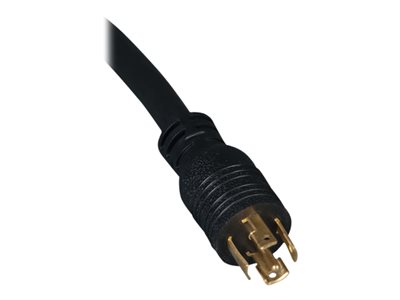

Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

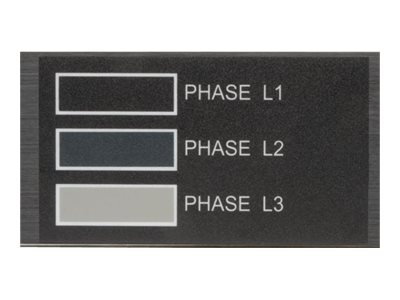

27 total outlets arranged in three single phase output load banks

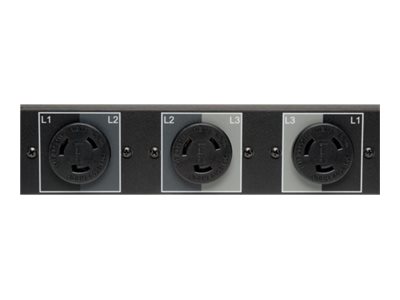

6 NEMA L6-20R outlets output 208V

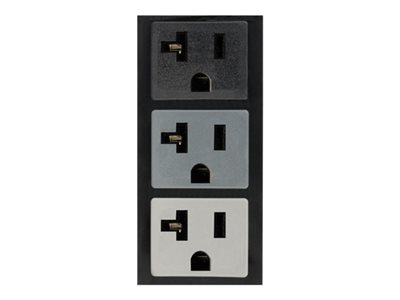

21 NEMA 5-15/20R outlets output 120V
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
