Description
Description: WM FLAT CURVED DISP TV MON TILT 37-80IN

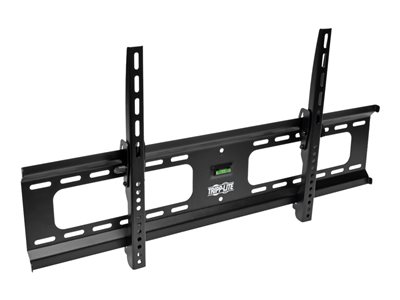

Tripp Lite Heavy-Duty Tilt Wall Mount for 37″ to 80″ TVs and Monitors, Flat or Curved Screens, UL Certified – Bracket – for flat panel – steel – black – screen size: 37″-80″ – wall-mountable
The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.
The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.
Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
This mount has been tested in accordance with UL Standard 2442.

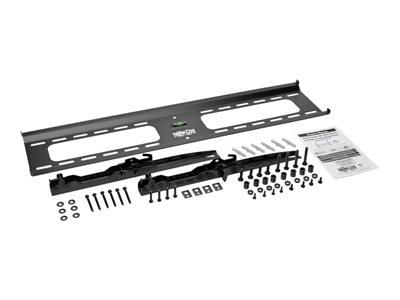

Whats in the Box
- Wall plate
- 2) Adapter brackets
- 4) M5 x 14 screws
- 4) M6 x 14 screws
- 4) M6 x 30 screws
- 4) M8 x 30 screws
- 4) M8 x 50 screws
- 4) Washers
- 8) Small spacers
- 8) Big spacers
- 6) Anchor bolts
- 6) Concrete anchors
- 6) D6 washers
- Owner’s manual
Key Selling Points
Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
10° to 0° tilt capability provides comfortable viewing from multiple angles
Supports up to 165 lb.
Mounting hardware included
