Description
Description: HDMI QUAD MULTI VIEWER SWCH 4PT 1080P
Tripp Lite HDMI Quad Multi-Viewer Switch – 4-Port with Built-in IR, 1080p @ 60 Hz (F/4xF) – Video/audio switch – 4 x HDMI – desktop
This 4-input HDMI multi-viewer allows you to connect four separate HDMI audio/video sources to one HDMI television, projector or monitor, and then display the video feeds from all four at the same time. For instance, connect a media server, Blu-ray player, security camera and Xbox to your HDTV, and watch the video transmission from all four simultaneously with built-in IR control.
This HDMI quad multi-viewer is ideal for home theater, digital signage, broadcasting, video conferencing and security monitoring, just to name a few applications. Plus, it helps you avoid the cost of buying additional displays for your source devices and save space by combining four monitors into one.
Use the push-button on the unit or the included remote control to select which mode to use. In addition to displaying all four video feeds simultaneously in Quad Mode, you can watch video from two source devices using Dual Mode or just one in Full-Screen Mode. Pressing another button on the unit lets you switch the audio feeds independently of the video, so you can watch video from one HDMI source and hear audio from another. The unit comes with 12 different preset display configurations.
This HDMI multi-viewer ensures HD performance with video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It meets HDMI 1.3 and HDCP 1.2 standards.

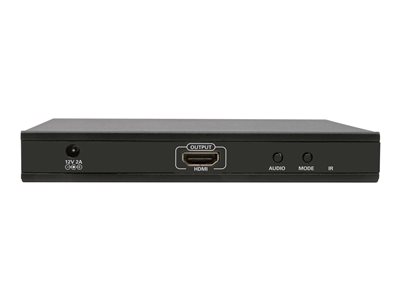

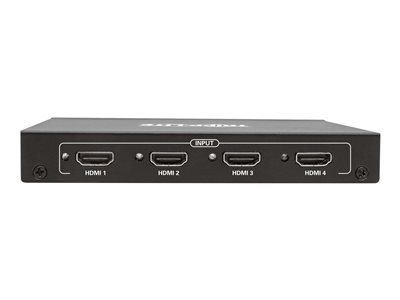

The compact plug-and-play switch requires no software or drivers to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite’s P568-Series), and plug the included external power supply (with four international plug adapters to ensure use all over the world) into an AC power source to get started. A red LED indicates the unit is receiving power, and blue LEDs indicate connected HDMI inputs.
Whats in the Box
- Tripp Lite HDMI Quad Multi-Viewer Switch – 4-Port with Built-in IR, 1080p @ 60 Hz (F/4xF)
- External power adapter, remote control, 4 power plug adapters, mounting kit
Key Selling Points
HDMI multi-viewer connects 4 HDMI audio/video sources and displays them simultaneously on a single HDMI TV, monitor or projector.
Can display video from one, two or all four HDMI sources at the same time
Included remote control allows you to toggle between display modes with ease
Transmits high-definition picture quality at 1080p video resolutions @ 60 Hz
Audio switches independently, so you can watch one video source and hear another
Plug-and-play operation with no software required for easy, immediate installation
