Description
Description: HDMI OVER CAT6 ACTIVE REM RECEIVER VID
Tripp Lite HDMI over Cat6 Active Remote Receiver 2-Port for Video/Audio, PoC, 4K @ 60 Hz, Up to 125 ft., TAA – Video/audio extender – receiver – HDMI – over CAT 6 – 4 ports – up to 125 ft – TAA Compliant
This box-style active remote receiver works in tandem with Tripp Lite’s B127-002-H or B127-004-H transmitter to extend 4K video (at 60 Hz) and 7.1 audio from an HDMI source to two HDMI displays up to 125 feet using Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet and a 1080p HDMI signal (at 60 Hz) up to 200 feet.
The B127-200-H is recommended for home theaters and video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

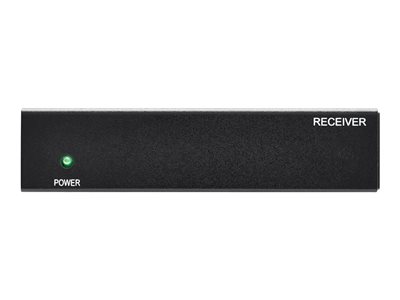

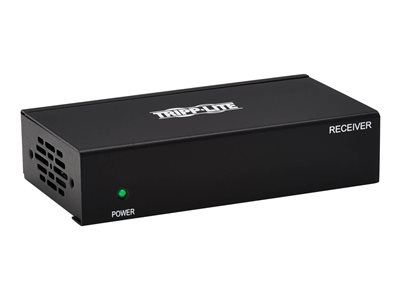

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.
The B127-200-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. The receiver is compatible with HDMI 2.0 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-200-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
The receiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to the display with a user-supplied high-speed HDMI cable (such as Tripp Lite’s P568- or P569-Series) and to the transmitter with Cat6 Ethernet cable (such as Tripp Lite N202-Series cable).
The B127-200-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Key Selling Points
Requires Tripp Lite B127-002-H or B127-004-H transmitter to extend HDMI signals
Supports UHD resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) for crystal-clear 4K video
Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
Plug-and-play operation with no software required for easy, immediate installation
This product is covered by a 1-year limited warranty
