Description
Description: HDMI OVER CAT5/CAT6 ACTIVE EXTD RECIEVER
Tripp Lite HDMI over Cat5/Cat6 Active Extender Reciever Video Audio 1080p – Video/audio extender – over CAT 5/6 – up to 125 ft – TAA Compliant

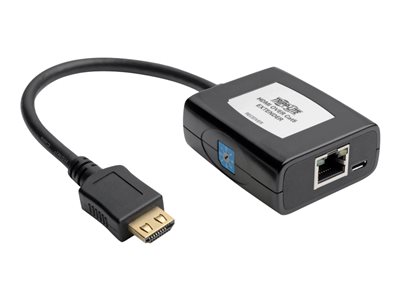

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite’s B126-002 or B126-004 transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The receiver’s built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

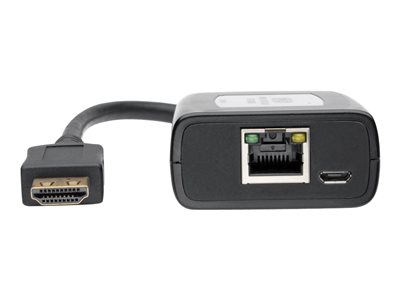

The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 38.1 m (125-ft.) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

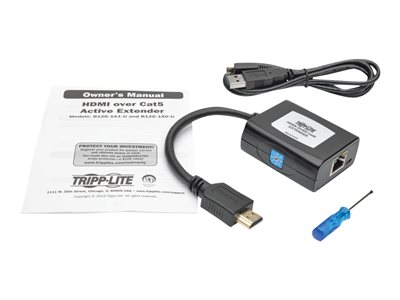

Whats in the Box
- B126-1A0-U Receiver unit
- USB Micro-B to USB-A cable, 0.91 m (3-ft.)
- Screwdriver for adjusting equalization
- Owner’s manual
Key Selling Points
Extends a 1080p (@ 60 Hz) signal up to 125 ft.
Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
Supports stereo audio and HDCP
Built-in equalization control lets you adjust the image
Plug-and-play engineering—no software, drivers or external power supply
Powered via included USB cable

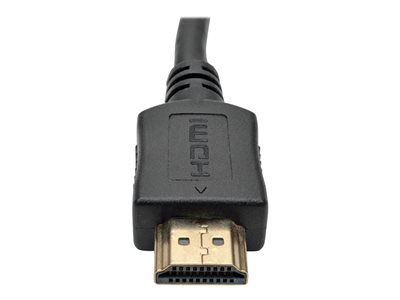

Connects quickly to display with built-in HDMI cable
LEDs indicate when units are receiving power and a signal from the source
Works with all operating systems and HDMI sources
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
