Description
Description: HDMI OVER CAT5 ACTIVE EXT KIT TAA GSA
Tripp Lite HDMI Over Cat5/6 Active Video Extender Kit Transmitter Receiver 1080p 200′ – Video/audio extender – over CAT 5/6 – up to 200 ft
The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite’s N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.
A 1080p (60Hz) signal can be transmitted up to 150 ft. A 1080i (60Hz) signal can be transmitted up to 200 ft. A 3D signal can be transmitted up to 125 ft. Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit: Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays. A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft. A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft. A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
Key Selling Points

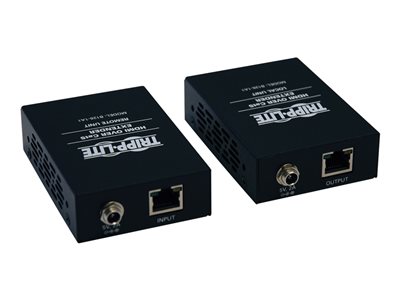

Two piece kit includes both local transmitter and remote receiver units
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
HDCP and 3D compatible
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
Supports 24-bit True Color (8-bits per channel)

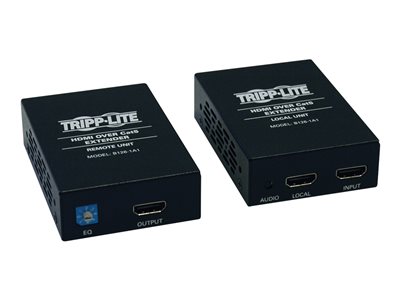

Transmitter unit features an HDMI port for the connection of a local monitor
Can further expand the range and number of monitors by adding B126-110 repeaters
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..
Features a built-in Equalization control for adjustment of the video image

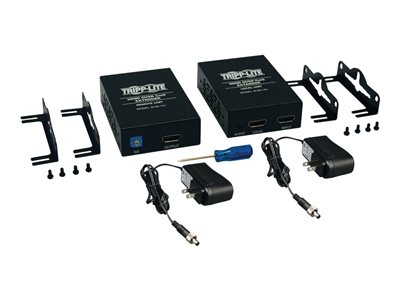

Mounting hardware is included that allows the B126-110 to be rackmounted, wallmounted or pole mounted
Compatible with all operating systems
Plug and play; No drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
