Description
Description: HDBASET LITE HDMI OVER CAT5E CAT6 500FT

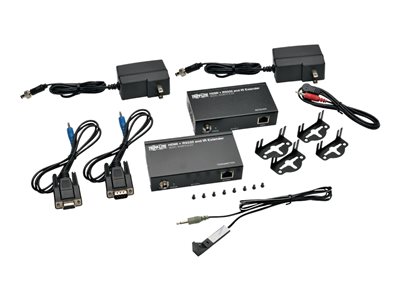

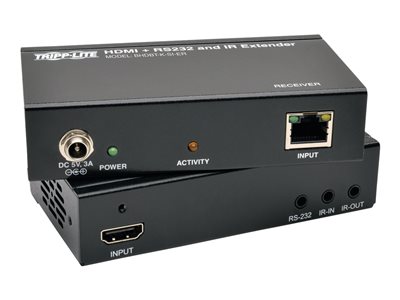

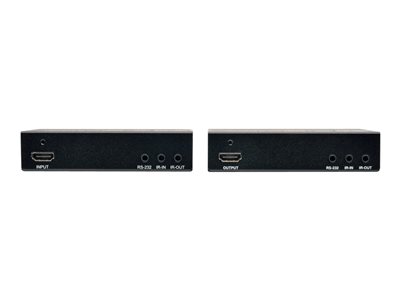

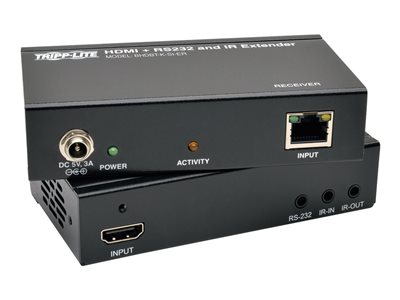

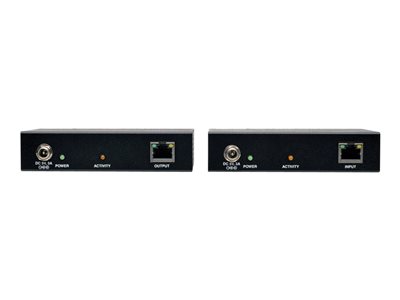

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 150m 500ft – Video/audio/infrared/serial extender – over CAT 5e/6/6a – up to 492 ft – TAA Compliant
The BHDBT-K-SI-ER HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 500 feet(150 m) over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz. Add up to five Tripp Lite BHDBT-TR-SI-ER transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 3,000 feet(900 m) with a monitor connected via HDMI port to each transceiver.
You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-ER’s 2-way IR Remote Control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The BHDBT-K-SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI-ER Extender Kit set up and ready to go quickly.
Key Selling Points
Extends a 1920 x 1080 (1080p) @ 60Hz video signal up to 500-ft. (150M) from the source
Further extend the range and number of monitors by adding BHDBT-TR-SI-ER transceivers
Each transceiver features a HDMI port for the connection of a monitor, and can be located up to 500-ft. (150M) from the unit preceding it
Up to 5 transceivers can be located between the transmitter and receiver, allowing for an overall extension distance of 3,000-ft. (900M), with a monitor located at each point in the chain
2-way IR Remote Control allows you to control your Blu-Ray player using its remote control when at the remote display, or to control your remote display using its remote control when at the Blu-Ray player (IR Frequency @ 39Khz)
Extend a full duplex RS-232 serial signal, such as from a touchscreen monitor or scanner
