Description
Description: HDBASET HDMI EXTD KIT PWR OVER CAT5/6/6A
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Power / IR Control 4K x 2K 70m 230ft – Video/audio/infrared/serial extender – over CAT 5e/6/6a – up to 230 ft – TAA Compliant
The BHDBT-K-PI HDBaseT Class B(HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 70 m (230-ft.) over a single Cat5e/6/6a cable, including video resolutions up to 1920 x 1080(1080p). It also extends an Ultra High Definition (UHD) 3840 x 2160(4K x 2K) @ 24/30Hz signal up to 40 m (130-ft.).
In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source.

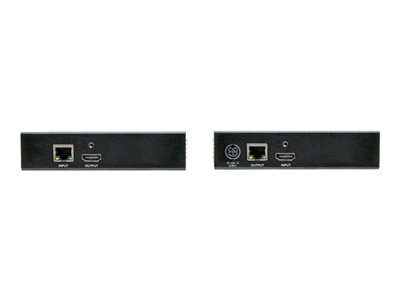

The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-PI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.
Key Selling Points
Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
Extends an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal up to 130 ft.
Extends a high-definition 1920 x 1080(1080p) signal up to 230 ft.
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
Supports 3D video, EDID and HDCP
Reduces cable clutter and installation costs
Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source
2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor(and vice versa)
Prevent cables from coming loose or disconnected, ensuring an intact signal
Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors
Plug and play with no software or drivers to download and install

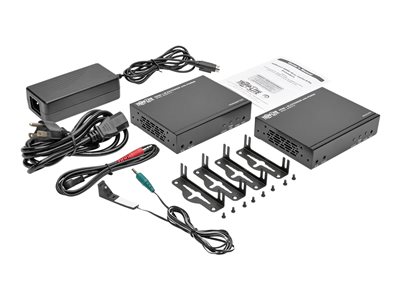

Includes mounting hardware for attaching each unit to a wall, rack or pole
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
