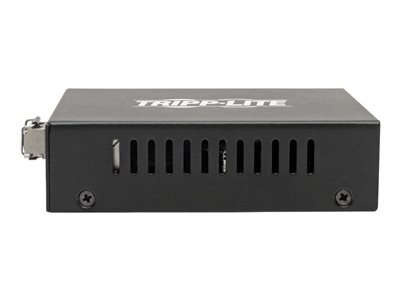

Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+ 10/100/1000 LC, 850 nm, 550 m (1804 ft.) fiber media converter 10Mb… N785-P01-LC-MM1

Description

Description: LC MMF TO GBE MEDIA CONVRT POE+ 550M
Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+ – 10/100/1000 LC, 850 nm, 550 m (1804 ft.) – Fiber media converter – GigE – 10Base-T, 100Base-TX, 1000Base-T – RJ-45 / LC multi-mode – up to 1800 ft – 850 nm

This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-LC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Monitoring and controlling your network nodes is easy with the N785-P01-LC-MM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
This media converter connects to the N785-001-LC-MM using multimode fiber optic cabling with LC ends (such as Tripp Lite’s N520-Series, sold separately) to extend an Ethernet network connection up to 550 meters. Use Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables) to deliver data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) from the N785-P01-LC-MM1.
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

Key Selling Points
Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
Supports multimode fiber optic cable with LC connectors up to 550 m (1804 ft.)
RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
Supports both full- and half-duplex operation
Works in tandem with Tripp Lite N785-001-LC-MM (sold separately)
2-year limited warranty
