Description
Description: FO ST MEDIA CONVRT 2KM

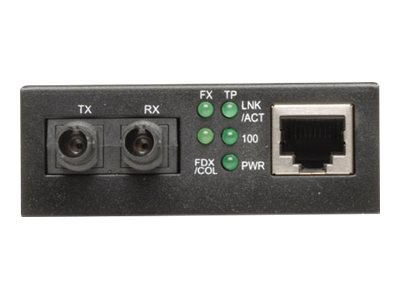

Tripp Lite Fiber Optic 10/100BastT to 100BaseFX-ST Multimode Media Converter 2km 1310nm – Fiber media converter – 100Mb LAN – 10Base-T, 100Base-FX, 100Base-TX – RJ-45 / ST – up to 1.2 miles
Tripp Lite’s N784-001-ST, 10/100 Multimode Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable).
Whats in the Box
- 10/100 Multimode Media Converter, UTP – ST
- External Power Supply with NEMA 1-15P Plug ( 100-240V )
- Owner’s Manual
Key Selling Points
Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
Auto MDI/MDI-X
UTP port auto-senses network speed
Switch selectable half or full duplex operation on the fiber port
Fiber lengths up to 2Km
2 Power Choices – AC-DC Adapter or USB
5 LED Function lights
Uses 62.5/125 or 50/125 Multimode cable
3.75″L x 2.75″W x 1″H
Wavelength: 1310nm
Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
