Description
Description: EXTD KIT 2PC DVI OVER CAT5
Tripp Lite DVI Over Cat5/Cat6 Passive Video Extender Kit Transmitter Receiver 100′ – Video extender – over CAT 5/6 – up to 100 ft

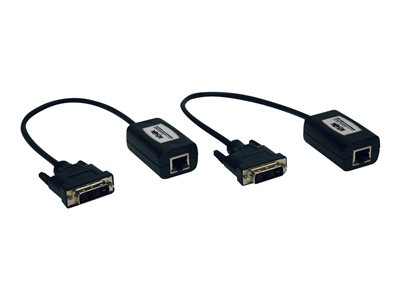

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 30.5 m (100-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite’s N202-Series). The B140-101 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required.
Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 15 m (50-ft.) from the source, or a 1024 x 768 @ 60Hz signal up to 30.5 m (100-ft.).
