Description
Description: DPT ACTIVE EXTD SIGNAL BOOST DPT F/F TAA
Tripp Lite Displayport Video Extender Equalizer Repeater for A/V 1920×1200 1080p – Repeater – DisplayPort – 20 pin DisplayPort / 20 pin DisplayPort – up to 150 ft – TAA Compliant

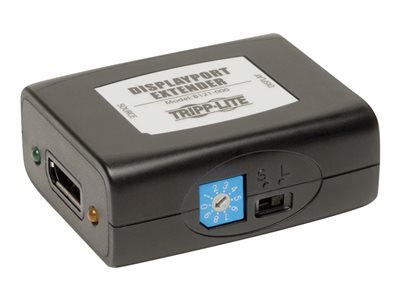

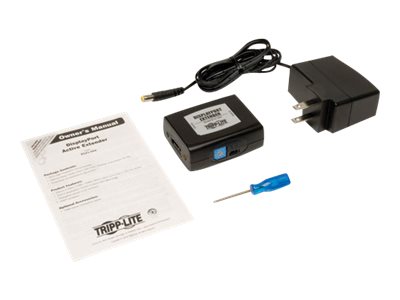

Tripp Lite’s B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 45.72 m (150-ft.) from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (4.88 m (16-ft.) or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant.
Key Selling Points
Extend a Displayport signal up to 150 ft. from the source
Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
Use P580-Series Displayport Cables
When extending a 1920×1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
Built-in Equalization control to adjust the video image
HDCP compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
