Description
Description: DPT OVER IP TRANSMI EXTD RS-232 IR CNTRL
Tripp Lite DisplayPort Video + Audio with RS-232 Serial and IR Control over IP Transmitter, 1920 x 1080, 1080p, 328 ft. (100 m) – Video/audio/infrared/serial extender – transmitter – up to 328 ft – TAA Compliant
The B160-001-DPSI DisplayPort Video + Audio with RS-232 Serial and IR Control over IP Transmitter extends and distributes DisplayPort audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the receiver (sold separately), the total maximum distance from source to display is 656 feet (200 m).
Designed for managed network switches with IGMP, which allow login and remote management via switch interface, the B160-001-DPSI displays a single source on a single display or distributes a single signal to multiple displays. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.**
The B160-001-DPSI supports video resolutions up to 1920 x
1440, including 1080p, though it’s limited to the maximum resolution of the
receiver (sold separately). You can send the DisplayPort video source to any
analog or digital display, including HDMI and VGA. It extends IR control
signals that control a source, such as a Blu-ray player, from a remote display,
as well as RS-232 signals at serial baud rates up to 57600 Bps.
Compatible with Tripp Lite’s B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.

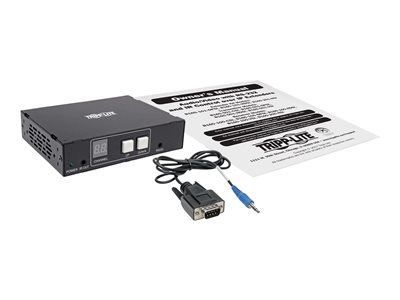

Whats in the Box
- Transmitter unit
- External power supply w/NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.5A
- Output: 5V, 2A)
- Plug adapters for U.S., U.K., Europe and Australia
- IR-Out cable
- 3.5 mm to DB9 adapter cable (M/F)
- Mounting hardware
- Owner’s manual
Key Selling Points
Extends and Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling
Converts source video to IP-based signal transmitted to and distributed through network switch
Extends signal up to 328 ft. (100 m) from switch
Can also connect directly to receiver up to 328 ft. away
Designed for Managed Network Switches with IGMP
Allows login and remote management via switch interface
Display single source on single display or distribute single signal to multiple displays
