Sale!

Tripp Lite DisplayPort to HDMI over Cat6 Splitter/Extender Kit, PoC, 4 Ports 4K @ 60 Hz, 125 ft. (38 m), TAA transmitter + 4 receivers vide… B127-004-D4H

Original price was: $752.00.Current price is: $714.40.

Tripp Lite DisplayPort to HDMI over Cat6 Splitter/Extender Kit, PoC, 4 Ports – 4K @ 60 Hz, 125 ft. (38 m), TAA – Transmitter + 4 receivers – video/audio extender – HDMI, DisplayPort – over CAT 6 – 4 ports – up to 125 ft – TAA Compliant

SKU: B127-004-D4H Categories: , Brand: Tripp Lite

Description

Description: DISPPT HDMI OVER CAT6 EXTD SPLIT KIT POC
Tripp Lite DisplayPort to HDMI over Cat6 Splitter/Extender Kit, PoC, 4 Ports – 4K @ 60 Hz, 125 ft. (38 m), TAA – Transmitter + 4 receivers – video/audio extender – HDMI, DisplayPort – over CAT 6 – 4 ports – up to 125 ft – TAA Compliant

This complete 4-port transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-004-D4H extends 4K video and stereo audio signals from a DisplayPort (DP) source device to four HDMI displays up to 38.1 meters away via user-supplied Cat6 cabling.
The B127-004-D4H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. It’s compatible with HDCP 2.2, DisplayPort 1.2a, EDID and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

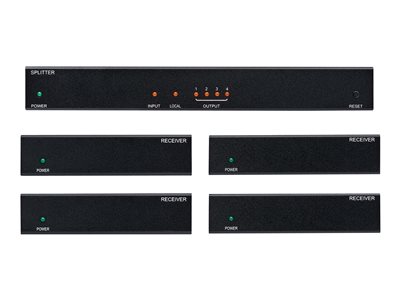

Built-in Power over Cable (PoC) technology powers the low-profile receivers over Cat6 cable. Green and orange LEDs on the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted.

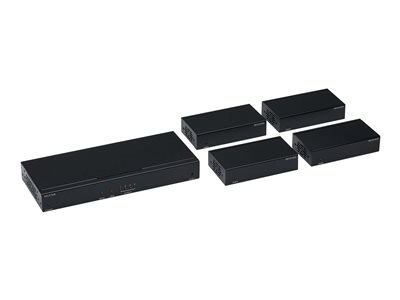

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source with a DisplayPort cable (Tripp Lite P580-Series) and the receivers to their displays with HDMI cable (such as Tripp Lite’s P568- or P569-Series). Connect the transmitter to the four receivers using Cat6 patch cable (Tripp Lite N202-Series). You can also connect an optional display to the transmitter’s local HDMI output to monitor the image transmitted to the receivers up to 38.1 m away.

Key Selling Points
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
Transmitter’s local HDMI port allows you to see the Ultra HD image being displayed
Compatible with latest HDMI standards, including 4:4:4 subsampling for HDR televisions
Plug-and-play operation with no software required for easy, immediate installation

Additional information

Weight 6.72 lbs
Dimensions 355 × 160 × 110 in
