Sale!

Tripp Lite DisplayPort to HDMI over Cat6 Extender Kit with KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA video/audi… B127A-1A1-BDBH

Original price was: $328.00.Current price is: $311.60.

Tripp Lite DisplayPort to HDMI over Cat6 Extender Kit with KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA – Video/audio extender – HDMI, DisplayPort – over CAT 6 – up to 230 ft – TAA Compliant

SKU: B127A-1A1-BDBH Categories: , Brand: Tripp Lite

Description

Description: DPT HDMI OVER CAT6 EXTD KIT
Tripp Lite DisplayPort to HDMI over Cat6 Extender Kit with KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA – Video/audio extender – HDMI, DisplayPort – over CAT 6 – up to 230 ft – TAA Compliant

DisplayPort to HDMI Extender Kit Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-1A1-BDBH extends 4K video and stereo audio signals from a DisplayPort source to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. USB 1.1 ports on the receiver end allow for the connection of a keyboard and mouse. The maximum transmission distance can be extended to a total of 400 ft. when used with Tripp Lite’s B127A-010-H signal booster.
Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127A-1A1-BDBH supports Ultra High Definition (UHD) video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It’s compatible with HDCP 2.2 and EDID. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Built-in bi-directional Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable opposite from the connected external power supply. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted.
Plug-and-Play Operation for Quick Setup and Immediate Use

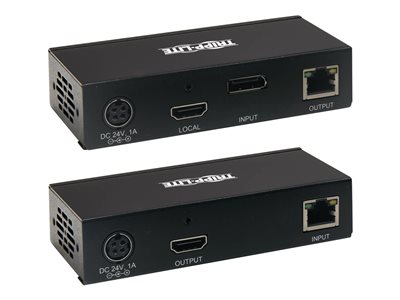

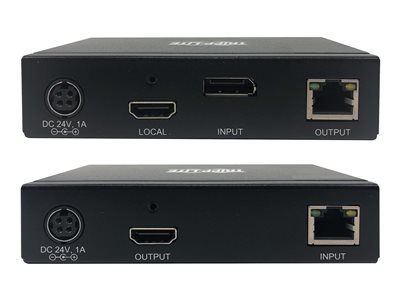

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the DisplayPort transmitter to the source with a user-supplied DisplayPort cable and the receiver to the display with a user-supplied HDMI (such as Tripp Lite’s P568- or P569-Series of HDMI cable and P580-Series of DisplayPort cable). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the receiver up to 125 feet away.
TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BDBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Key Selling Points
Delivers UHD picture quality at resolutions up to 4K x 2K @ 60 Hz, as specified in HDMI 2.0
Transmitter connects to a DisplayPort source and converts the signal to HDMI on the receiver end
Bi-directional Power over Cable (PoC) technology provides power to the either the transmitter or receiver via Cat6 cable
Transmitter’s local HDMI port allows you to see the Ultra HD image being displayed
USB 1.1 ports on receiver end allow for the connection of a keyboard and mouse
Compatible with DP 1.2 and HDMI standards including 4:4:4 Chroma subsampling and HDCP 2.2

Additional information

Weight 1.96 lbs
Dimensions 260 × 170 × 50 in
