Description
Description: DPT OVER IP RECEIVER EXTD CAT5-6 RS-232
Tripp Lite DisplayPort Audio/Video with RS-232 Serial and IR Control over IP Receiver, 1920 x 1080 (1080p) @ 60 Hz, 328 ft. (100 m) – Video/audio/infrared/serial extender – receiver – up to 328 ft – TAA Compliant
The B160-100-DPSI DisplayPort Audio/Video with RS-232 Serial and IR Control over IP Receiver extends and distributes DisplayPort audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 m).
The B160-100-DPSI is designed for managed network
switches with IGMP, which allow login and remote management via switch
interface. You can connect up to 64 transmitters and 255 receivers in a single
managed switch installation.**
The B160-100-DPSI supports video resolutions up to 1920 x
1080 (1080p) at 60 Hz. It works with any analog or digital source, including
HDMI and VGA. It extends IR control signals that control a source, such as a
Blu-ray player, from a remote display, as well as RS-232 signals at serial
baud rates up to 57600 Bps.
Compatible with Tripp Lite’s B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.

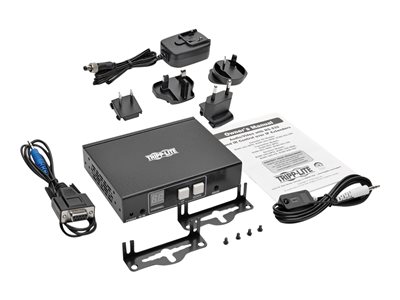

Whats in the Box
- Receiver unit
- External power supply w/NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.5A
- Output: 5V, 2A)
- Plug adapters for U.S., U.K., Europe and Australia
- IR-In cable
- 3.5 mm to DB9 adapter cable (M/M)
- Mounting hardware
- Owner’s manual
Key Selling Points
Extends and Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling
Converts source video to IP-based signal transmitted to and distributed through network switch
Extends signal up to 328 ft. (100 m) from switch
Can also connect directly to transmitter up to 328 ft. away
Designed for Managed Network Switches with IGMP
Allows login and remote management via switch interface
Works with any analog or digital source, including HDMI and VGA
