Description
Description: DISP TV LCD WM SWIVEL TILT 37IN 70IN

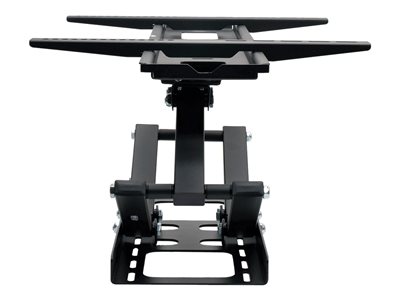

Tripp Lite Display TV Wall Monitor Mount Swivel/Tilt 37″ to 70″ TVs / EA / Flat-Screens – Bracket – for flat panel – steel – black – screen size: 37″-70″ – wall-mountable
The VESA-compliant DWM3770X swivel/tilt wall mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.
The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Durable all-metal frame with scratch-resistant powder-coated finish supports up to 75 kg (165 lbs.). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm.
Whats in the Box
- Wall mount
- Mounting template
- (2) Adapter brackets
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 20 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- (6) Anchor bolts
- (6) Concrete anchors
- (6) D6 washers
- Owner’s manual
Key Selling Points
Fits most flat-panel displays from 37″ to 70″:
Articulated arm with 6 pivots offer a full range of motion
Convenient one-touch display adjustment for easy view optimization
Built in level adjustment ensures perfect positioning
Wide range of motion with -15° to +15° tilt and 120° swivel capability
Supports up to 165 lbs.
5-year warranty
