Description
Description: VM TILT DISP TV LCD 60IN 100IN FLAT

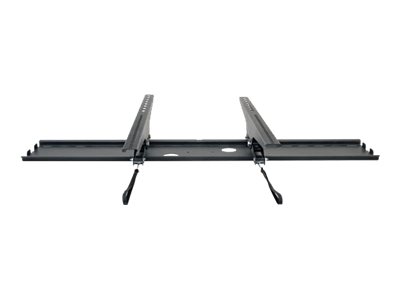

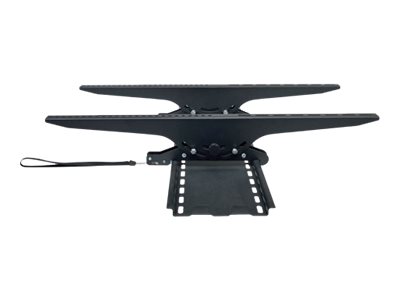

Tripp Lite Display TV LCD Wall Monitor Mount Tilt 60″ to 100″ TVs / EA / Flat-Screens – Bracket – for LCD display (Low Profile Mount) – steel – black – screen size: 60″-100″ – wall-mountable
The VESA-compliant DWT60100XX tilt wall mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches. A -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Display brackets with connected straps adjust to compensate for off-center wall studs. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 159 kg (350 lbs.). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 400 mm, 1000 x 600 mm and 1000 x 800 mm.
Whats in the Box
- Wall plate
- Mounting template
- (2) Adapter brackets
- (2) Tilt adjusting knobs
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 20 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- (6) Anchor bolts
- (6) Concrete anchors
- (6) D6 washers
- Owner’s manual
Key Selling Points
Low-profile mounting keeps unit out of sight for sleek, professional appearance
Fits most flat-panel displays from 60 in. to 100 in.
Supports up to 350 lbs.
Open frame for easy wall access
Tilt adjustment improves viewing angles in applications where the audience is below the display
Horizontal adjustment compensates for off-center wall studs
Wide range of motion with -15° to 15° tilt capability
